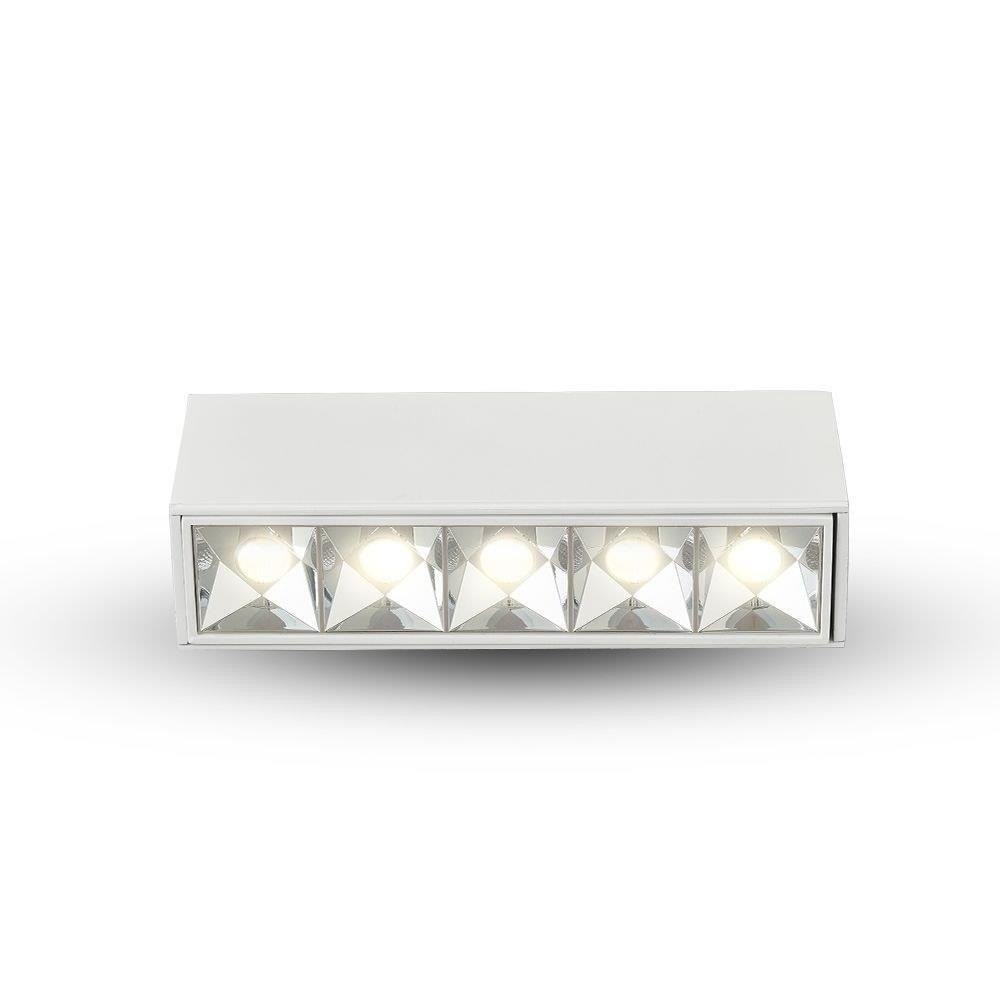

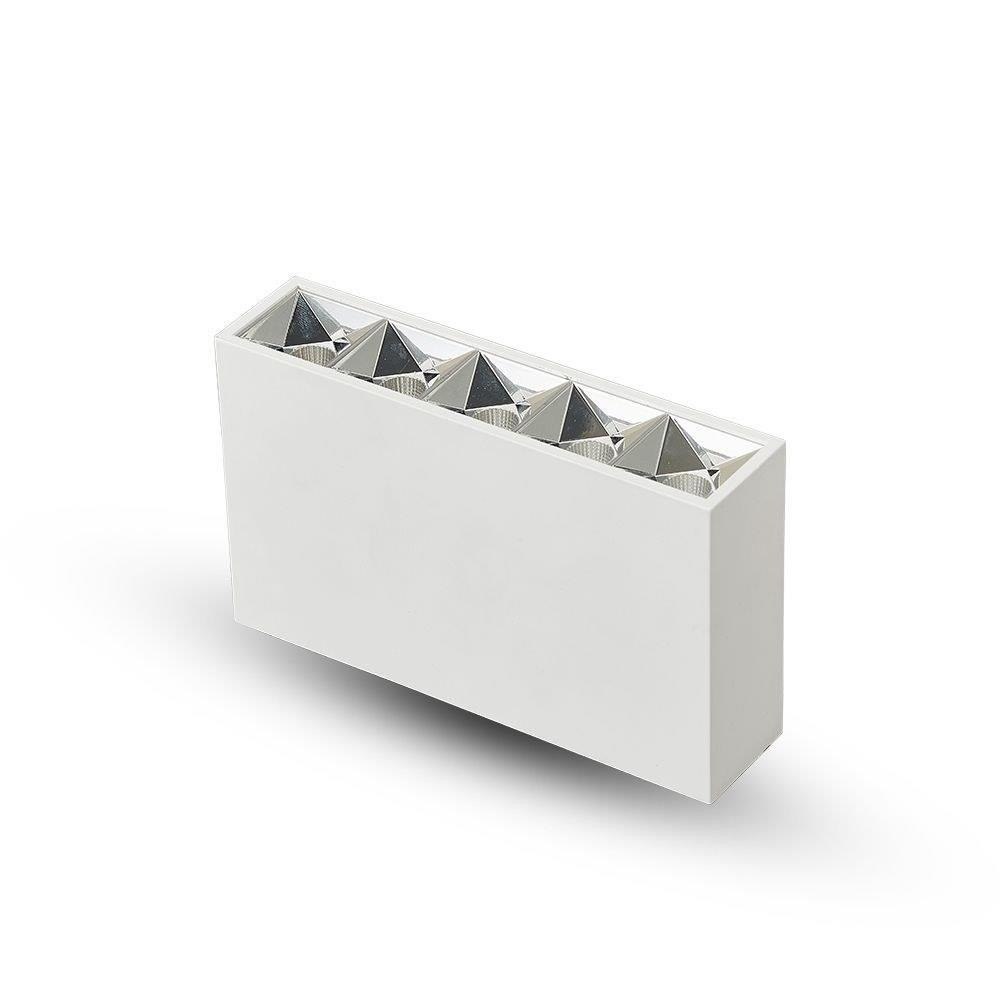

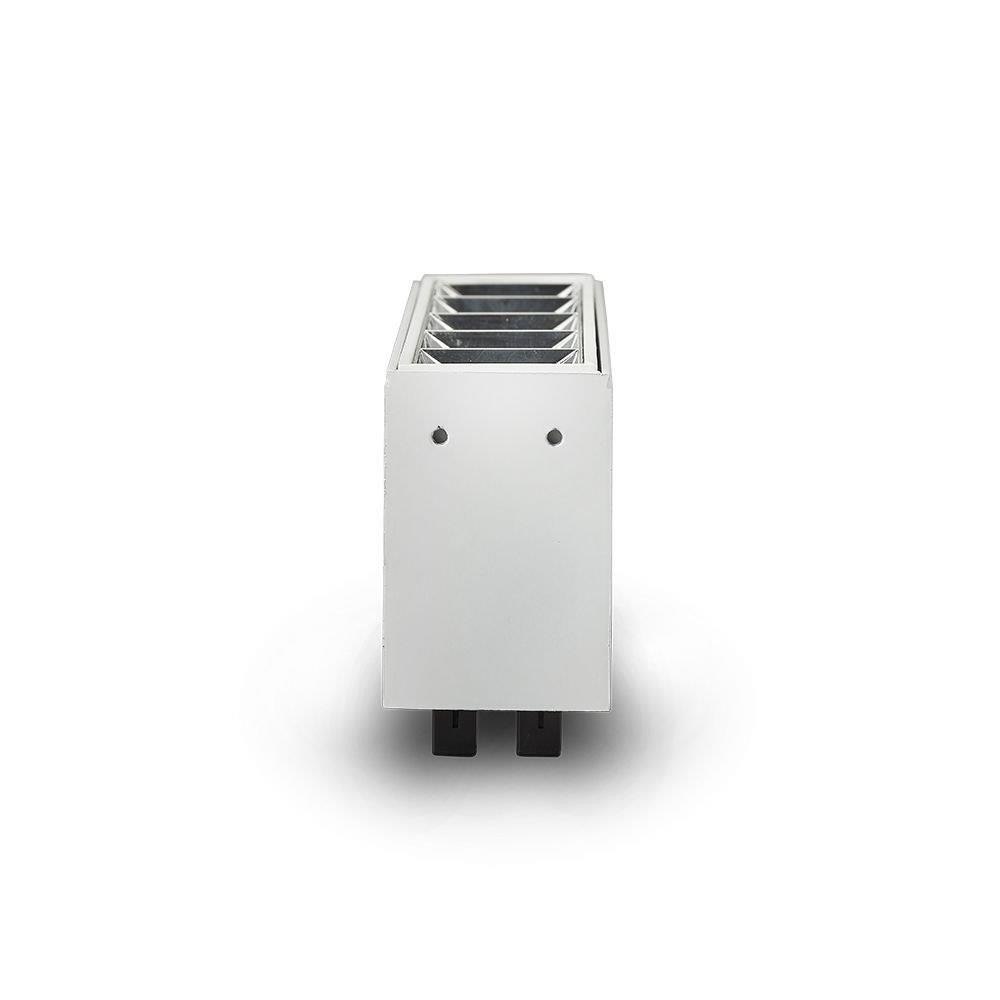

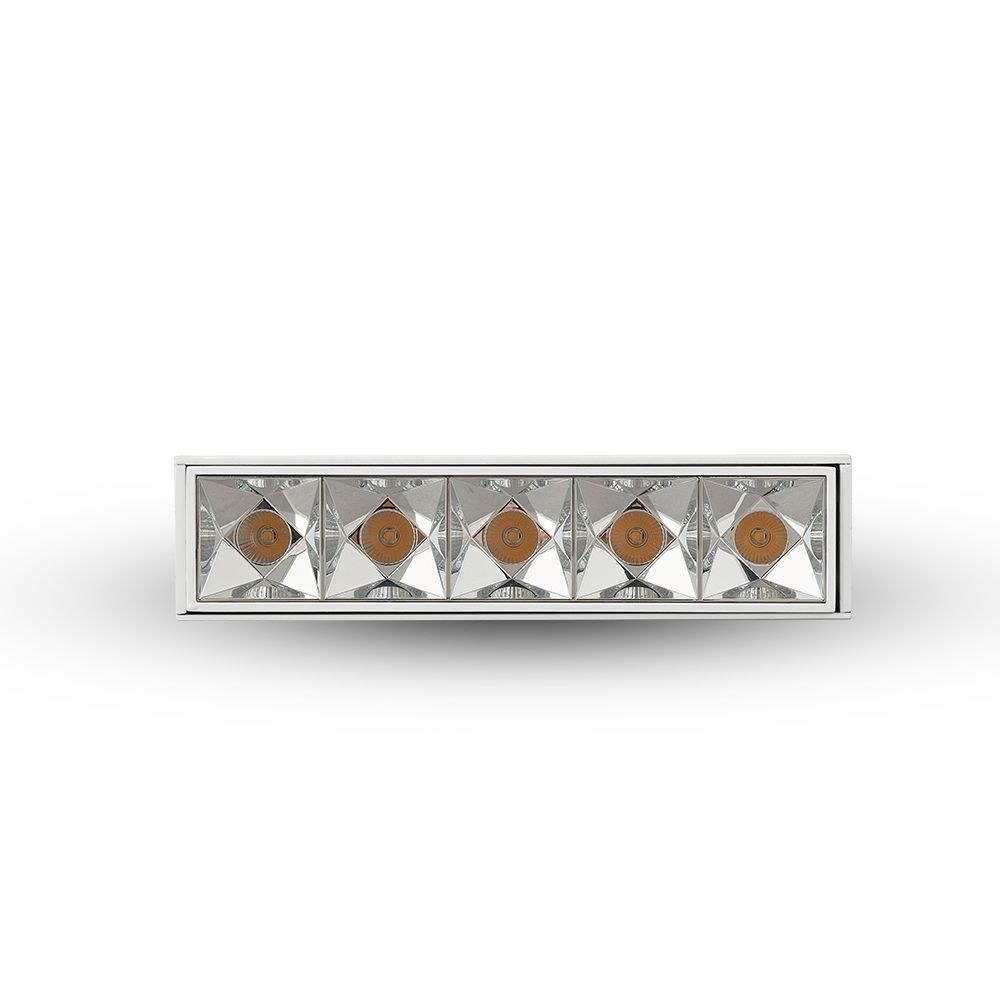

LED Fixed surface mounted downlight, RUBIK Series

Aluminum body structure available in White finish
Integrated LED 5-spot fixture, surface mounted with remote driver (included)
IC Rated
DIMENSIONS: 6.25"L x 1.5"W x 3.75"H
HOLE SIZE: 0.59" Diameter

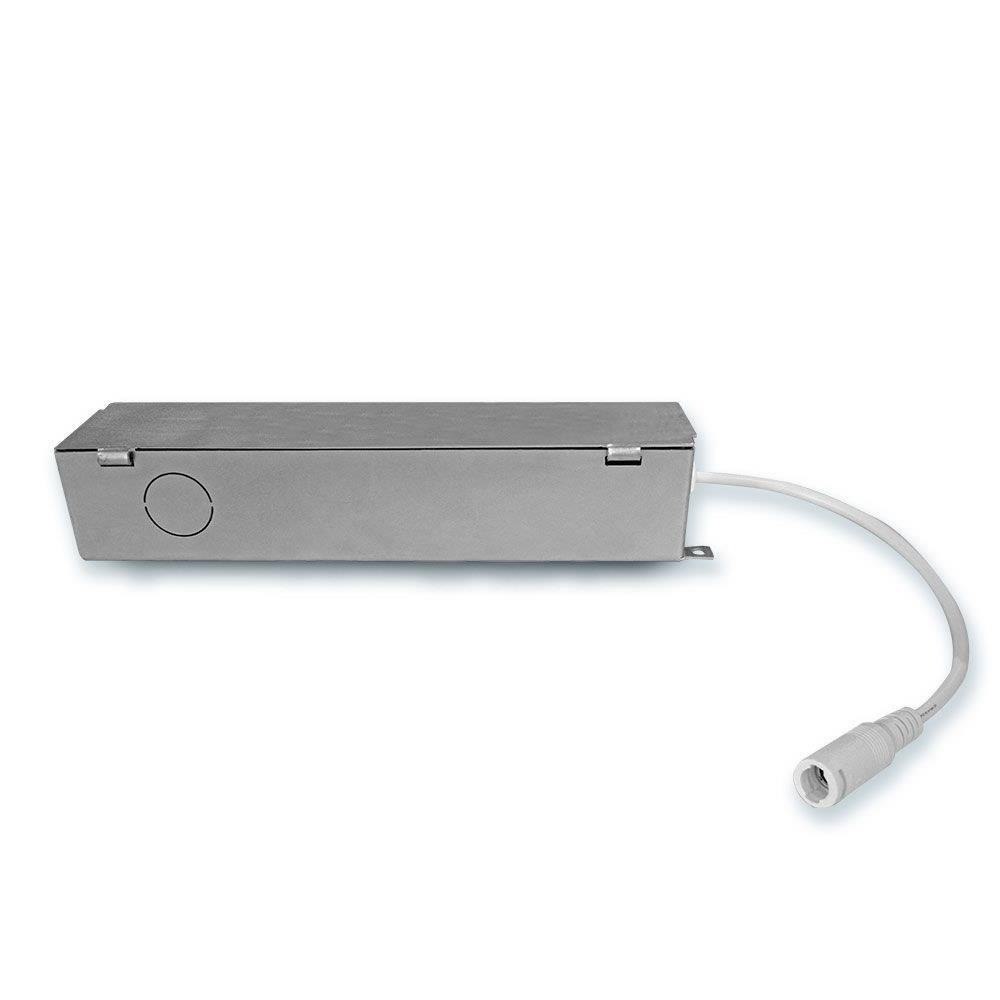

ELECTRICAL BOX DIMENSIONS (for included remote driver): 8.46"L x 1.77"W x 1.57"H
LENS BEAM ANGLE: offered in 4 beam angles 12°, 20° & 48°(special order required), 34°(stock beam angle)
STOCK BEAM ANGLE: 34°
DIMMABLE: 0-10V
CCT: 3000 Kelvin color temperature
BRIGHTNESS: 755.52 Lumens
WATTAGE: 12W
VOLTAGE: 100-277V
CRI 90: is the highest measurement of light about the accuracy of color appearance
IP Rate: IP20 (dry rated)
ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
3 Year Limited Warranty

***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***

SKU: VMCL000605D012WH

Dimensions

Width: 1.46 in
Height: 3.74 in

Lamping Details

Color Rendering Index: 90
Lamping Type: LED
Lamp Base Type: Integrated LED
Color Temperature: 3000
Lamp Life: 50,000 h
Number of Bulbs: 5
Dimmable: True
Lumen Output: 755 lm

Product Details

Power Source: Hardwire
Hanging Method: Flush
Finish Color: White
Warranty: 3 Years Limited
Voltage: 277 V
Wattage: 12 W
Material: Aluminum
Weight: 2.1 lb

Design Details

Collection: Rubik
