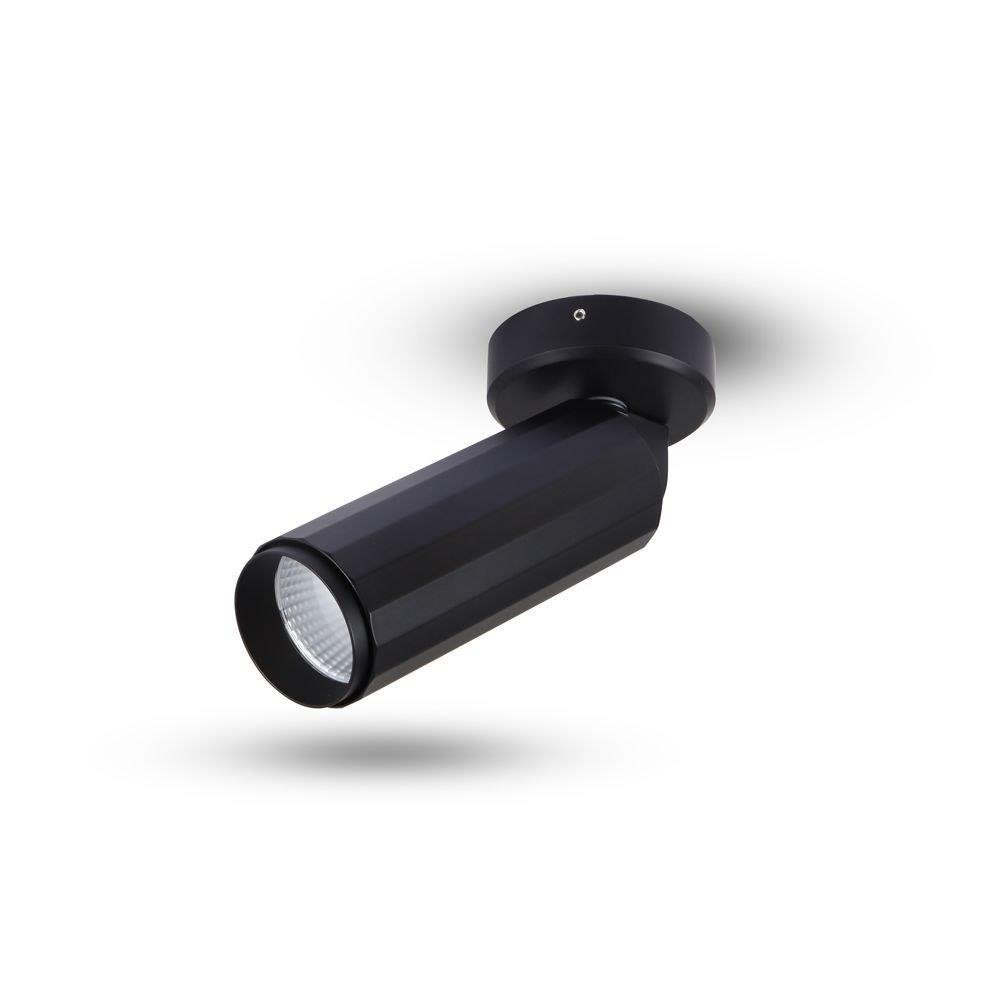

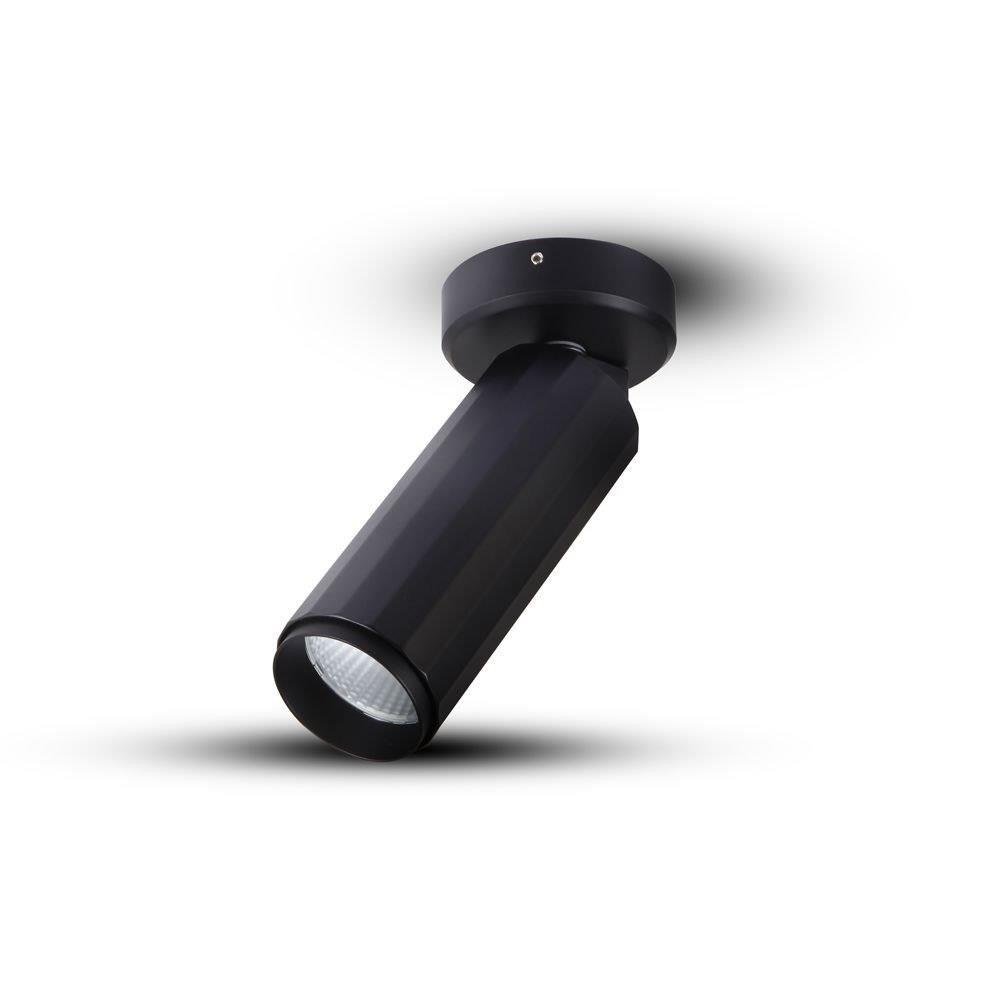

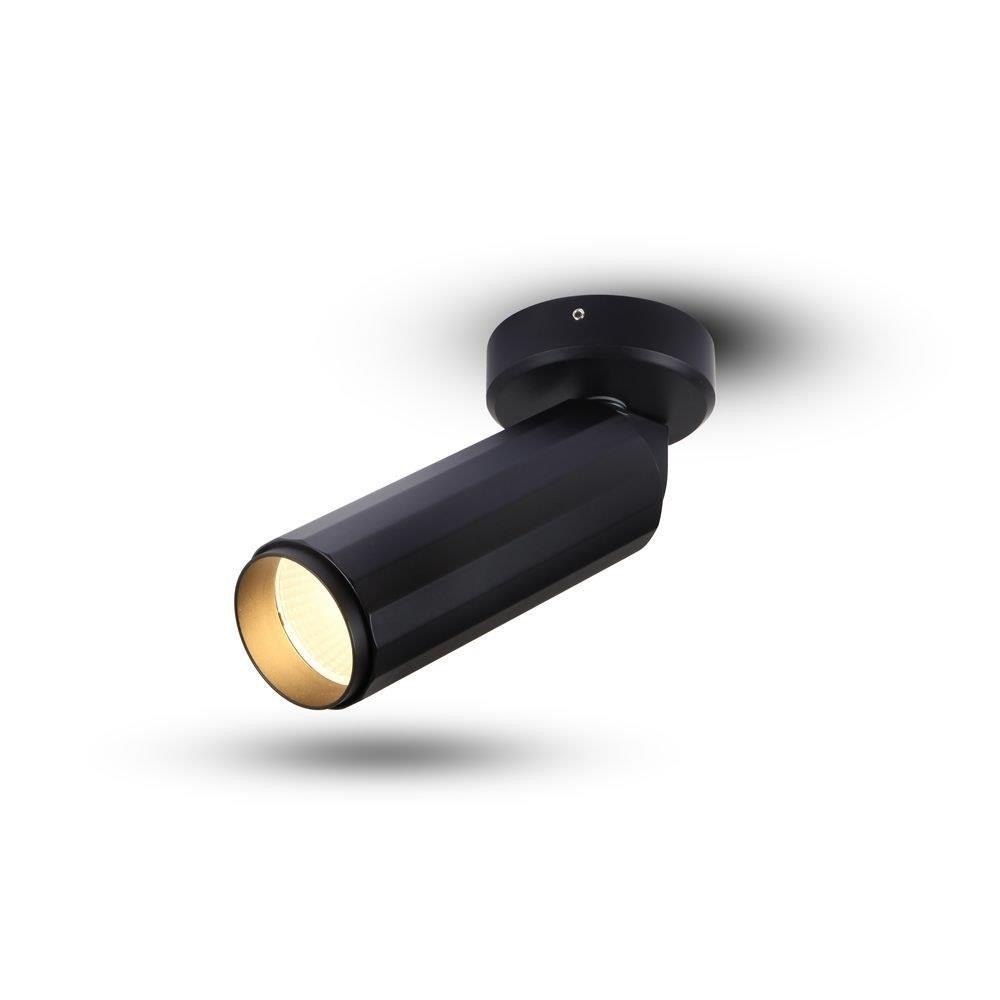

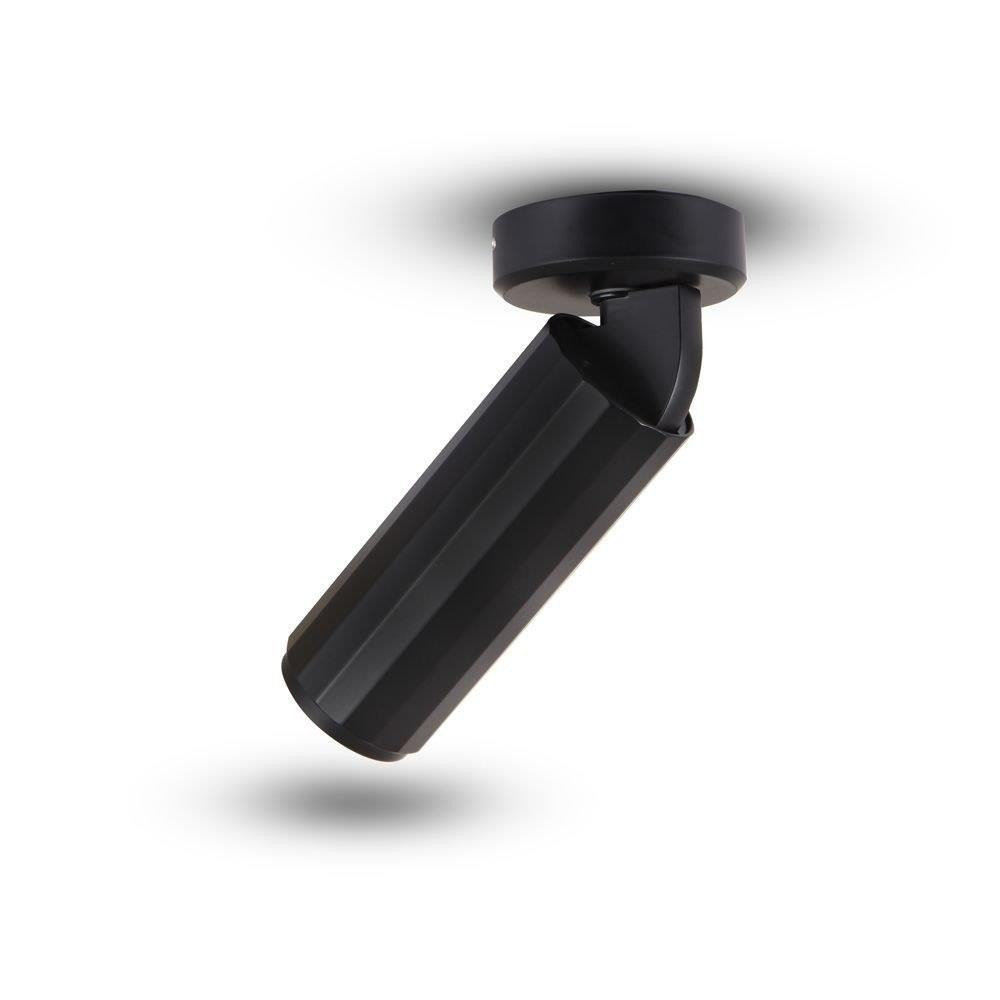

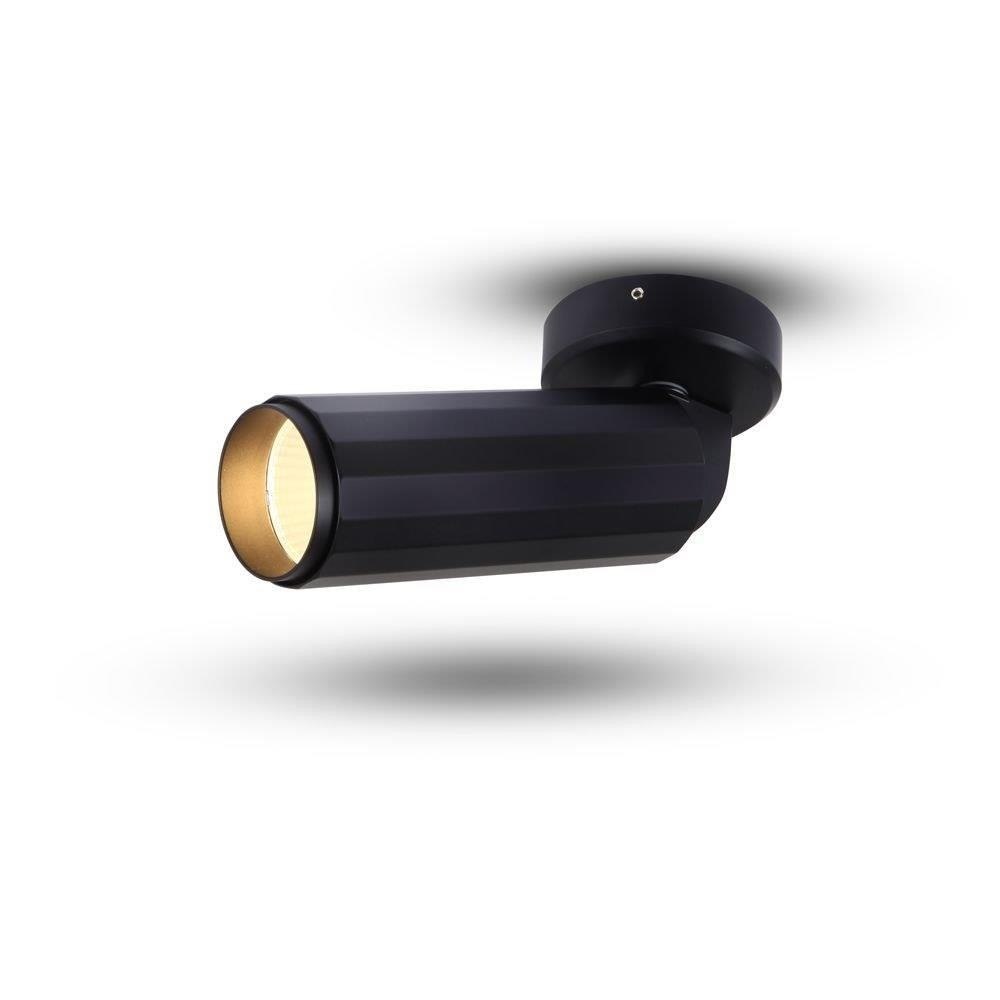

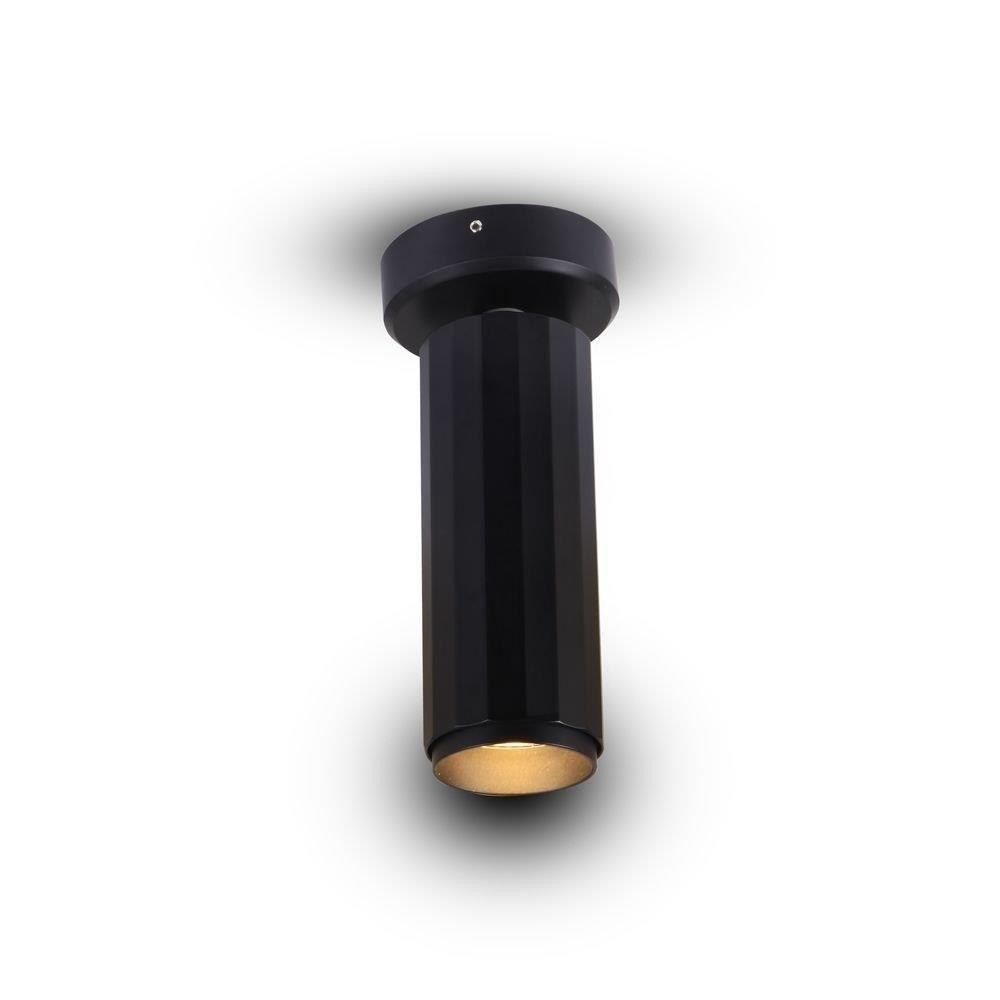

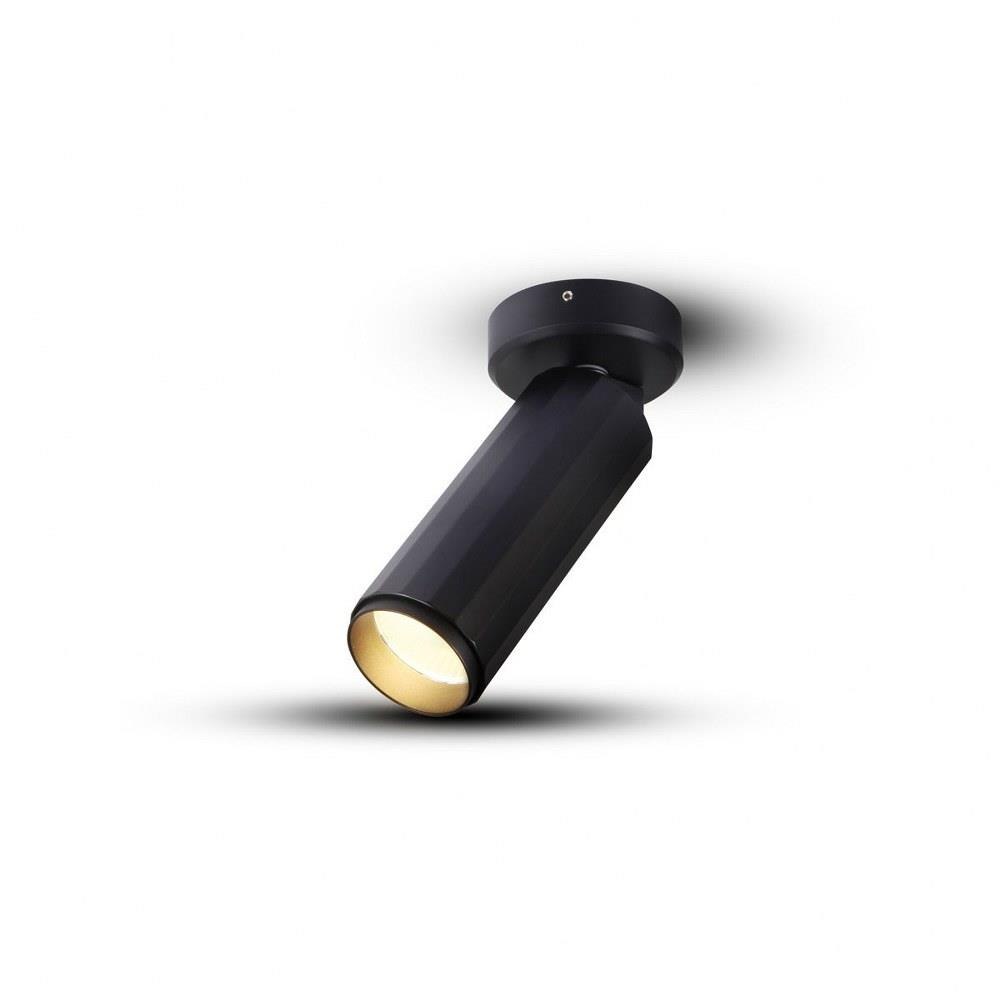

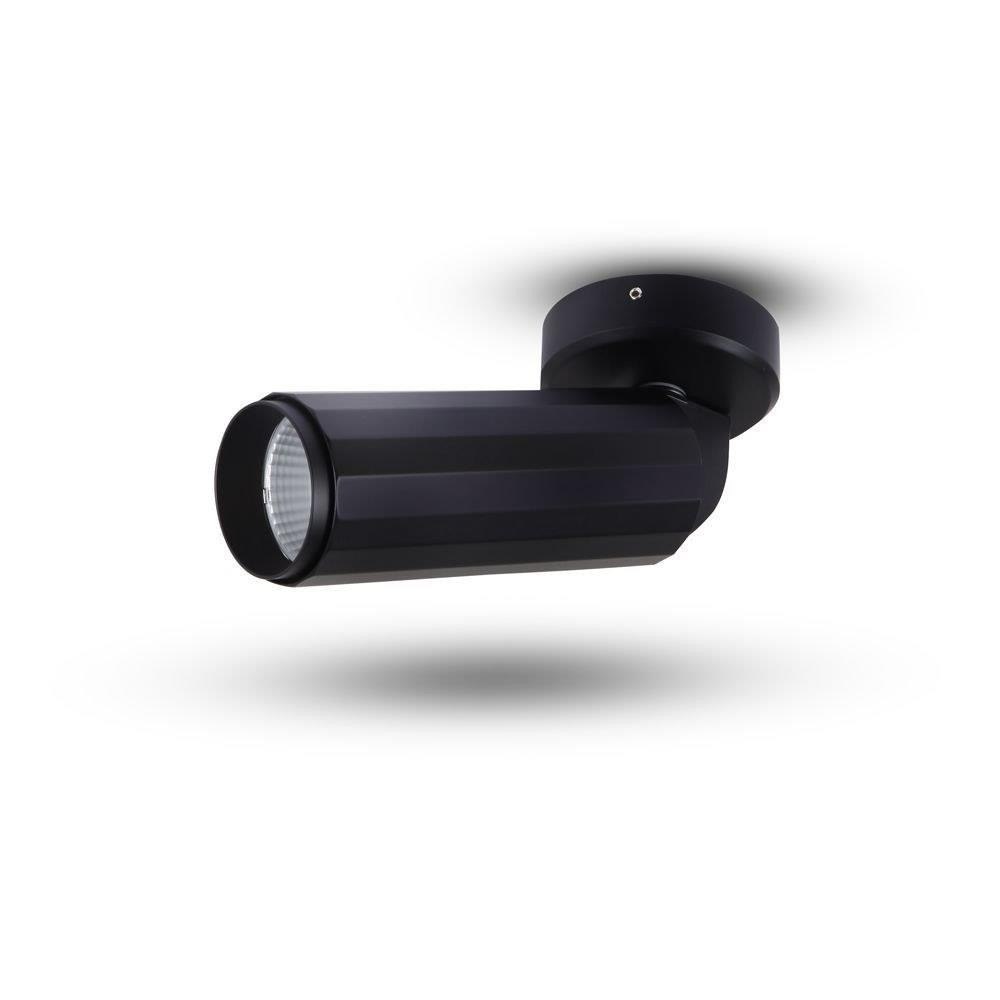

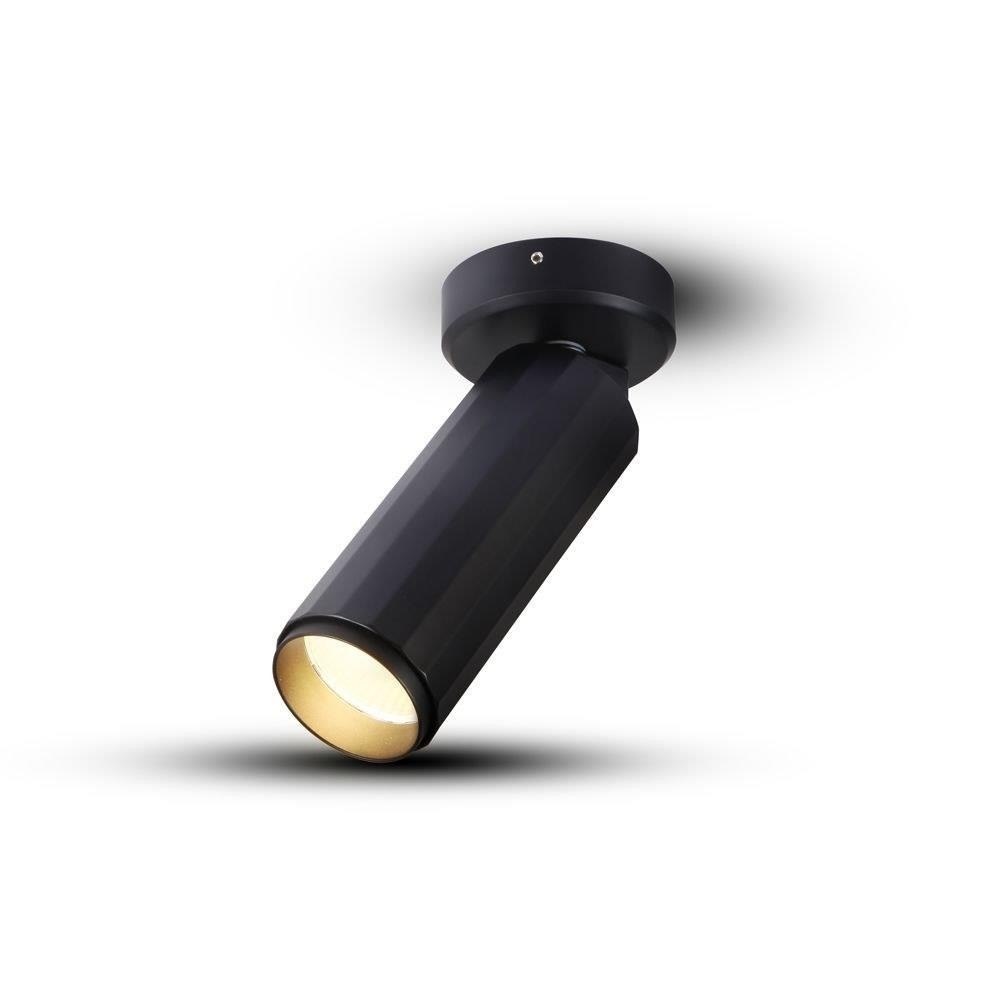

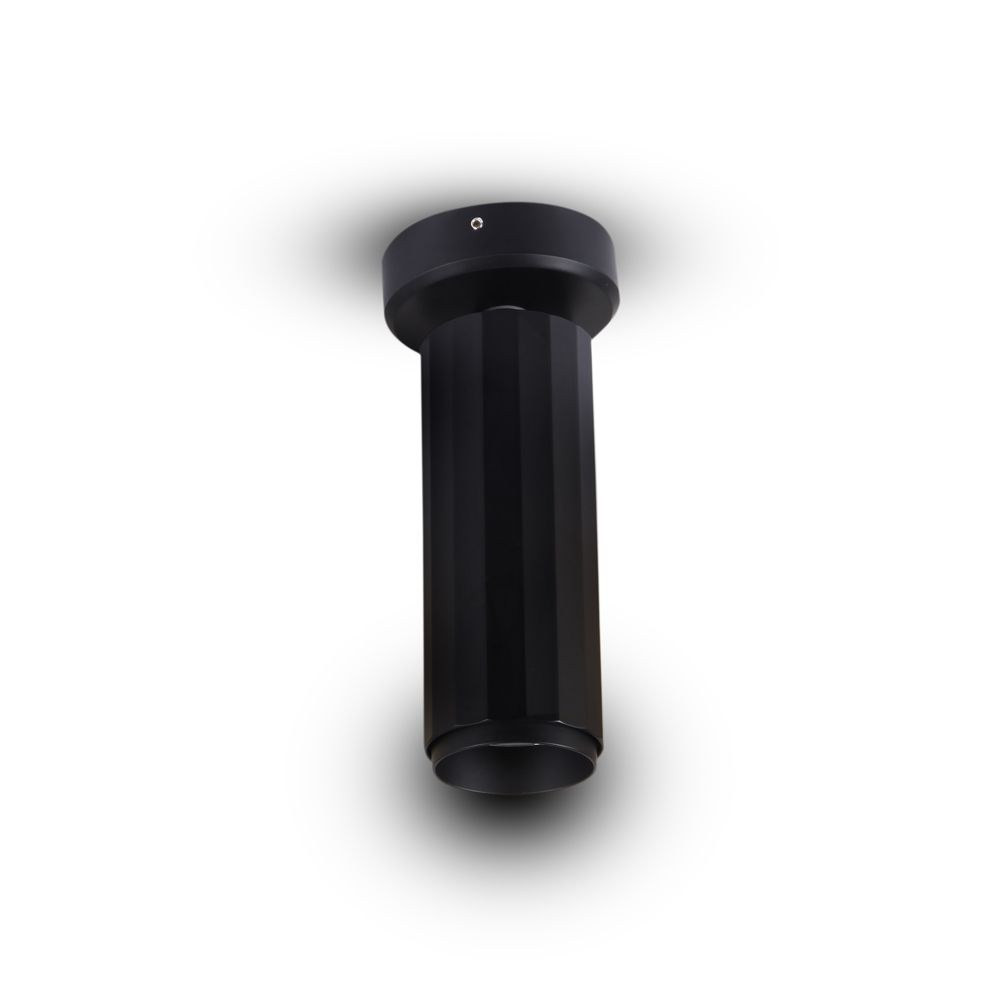

LED Adjustable surface mounted spotlight, ORBIT Series

• Aluminum body structure available in 2 finishes Black and White
• Integrated AC LED fixture (120VAC - no driver needed), surface mounted
• EASY INSTALLATION: plug and play with very little additional wiring
• IC Rated
• OVERALL DIMENSIONS: 2.75" Diameter x 6.25"H
• BACKPLATE DIMENSIONS: 2.75" Diameter x 0.75"H
• LIGHT HEAD DIMENSIONS: 2" Diameter x 5"H
• HOLE SIZE: 1.5" Diameter

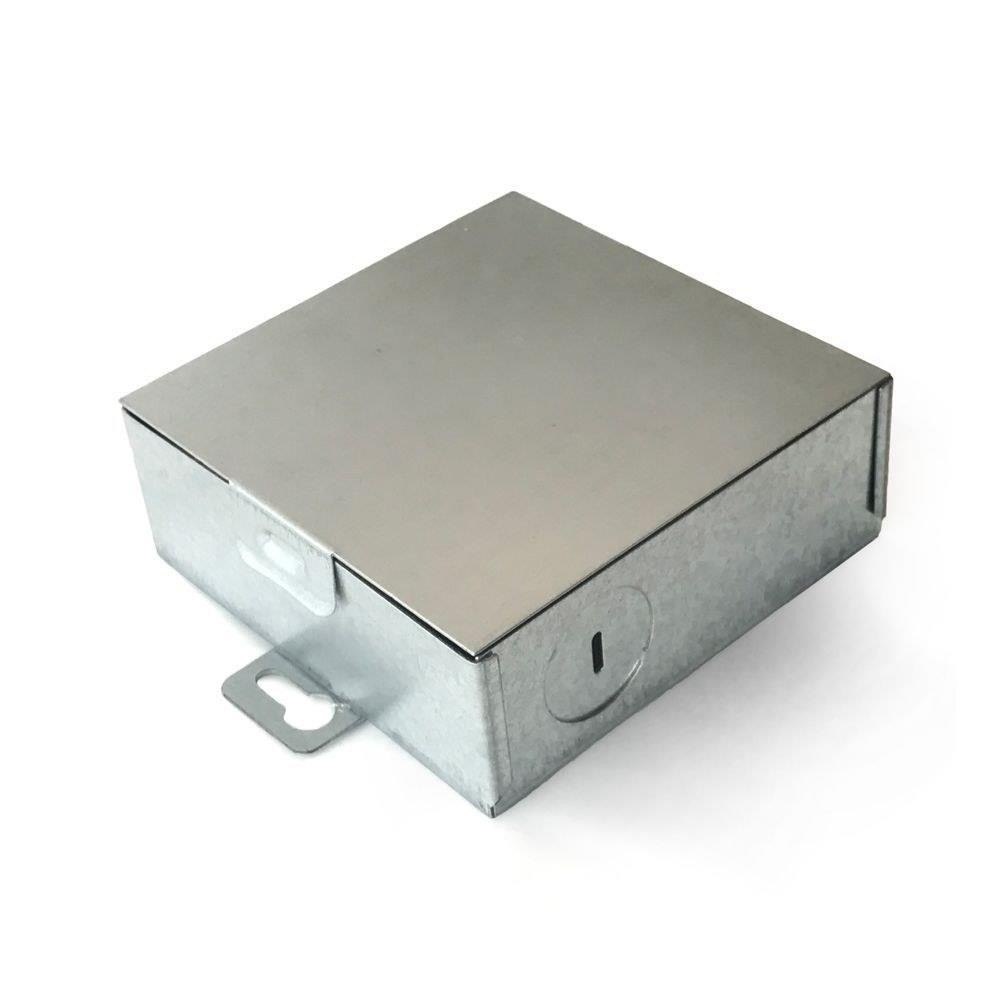

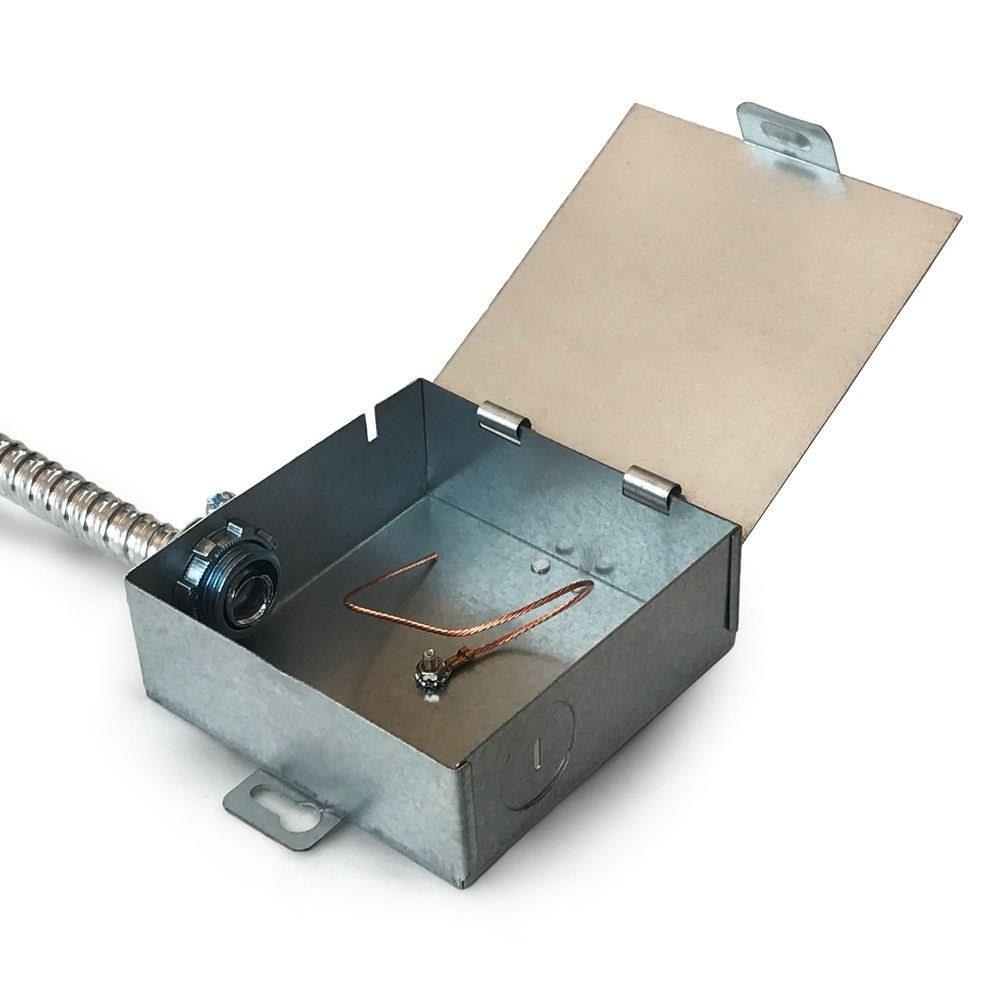

• ELECTRICAL BOX DIMENSIONS (supplied with the purchase for constructions that requires the electrical box): 4.33"L x 3.43"W x 1.34"H
• LENS BEAM ANGLE: offered in 3 beam angles 15° & 24°(special order required), 36°(stock beam angle)
• STOCK BEAM ANGLE: 36°
• DIMMABLE: ELV dimming
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 502.01 Lumens
• WATTAGE: 8W
• VOLTAGE: 120V
• CRI 90: is the highest measurement of light about the accuracy of color appearance
• IP Rate: IP20 (dry rated)
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty

***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***
