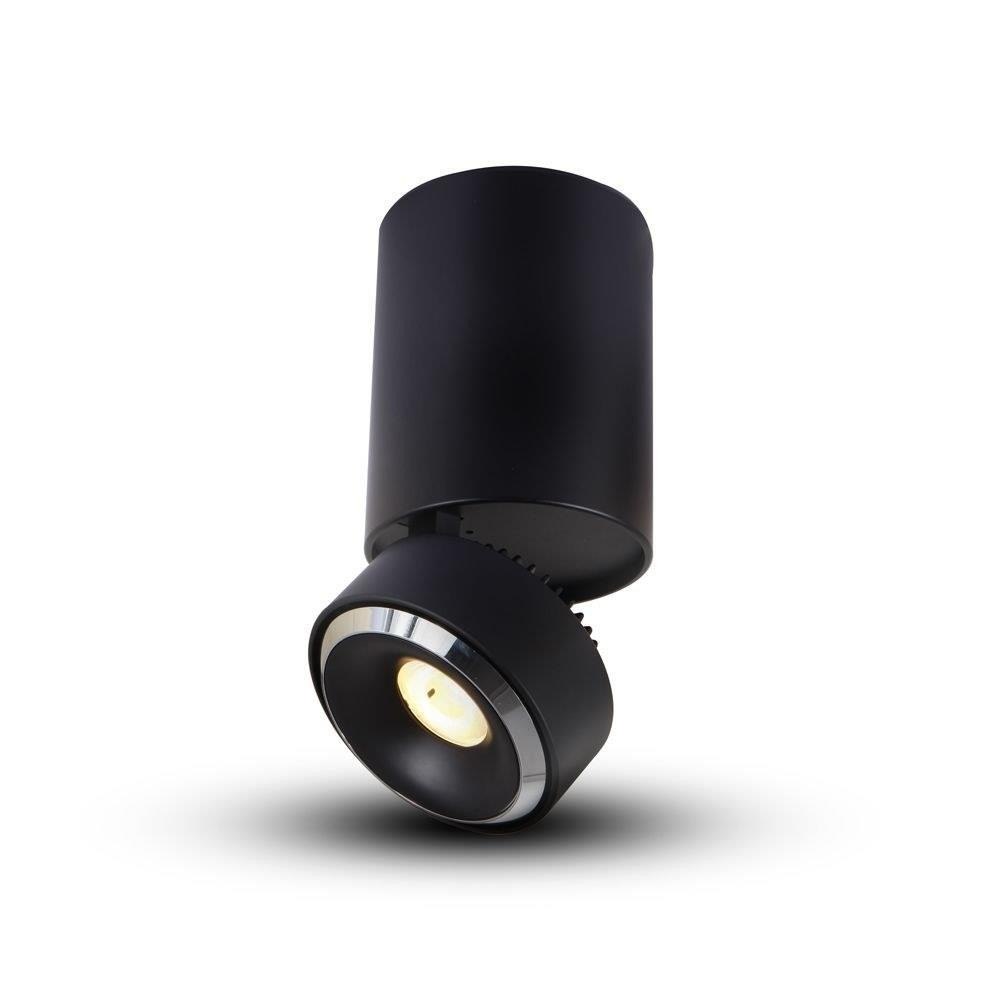

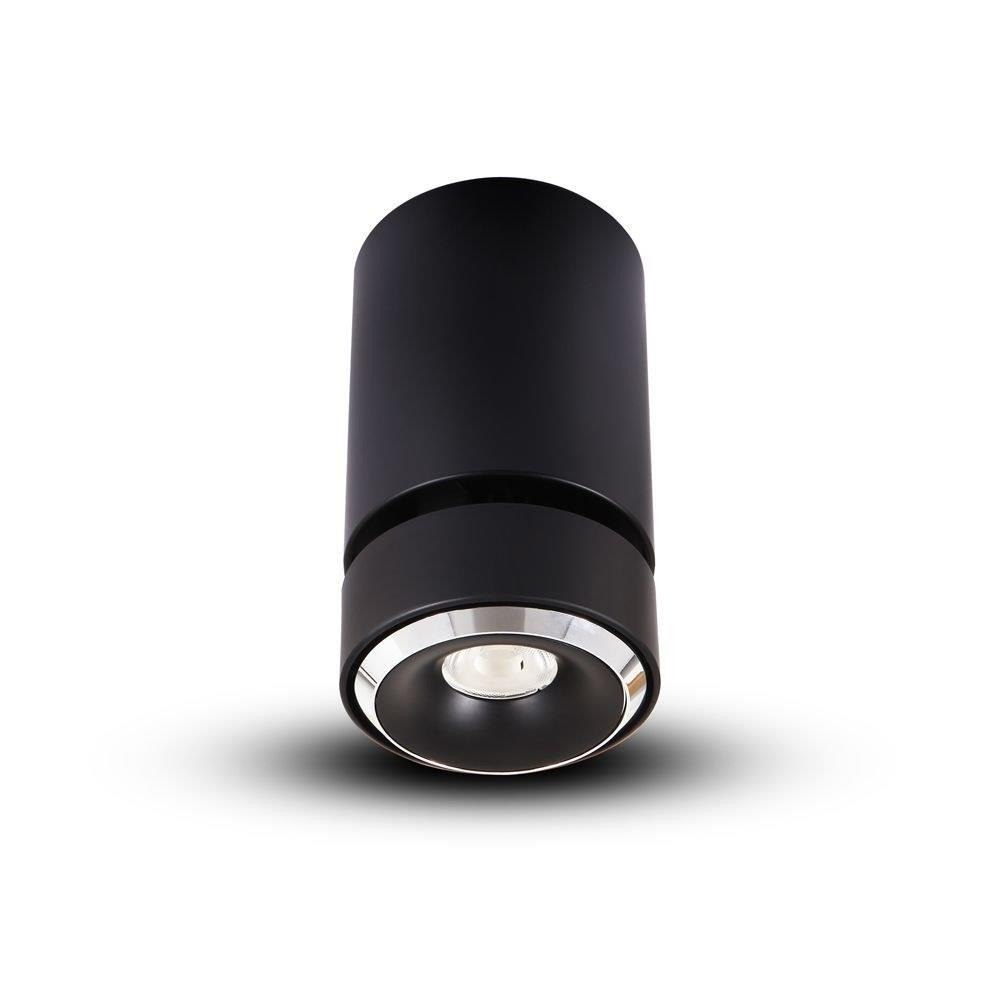

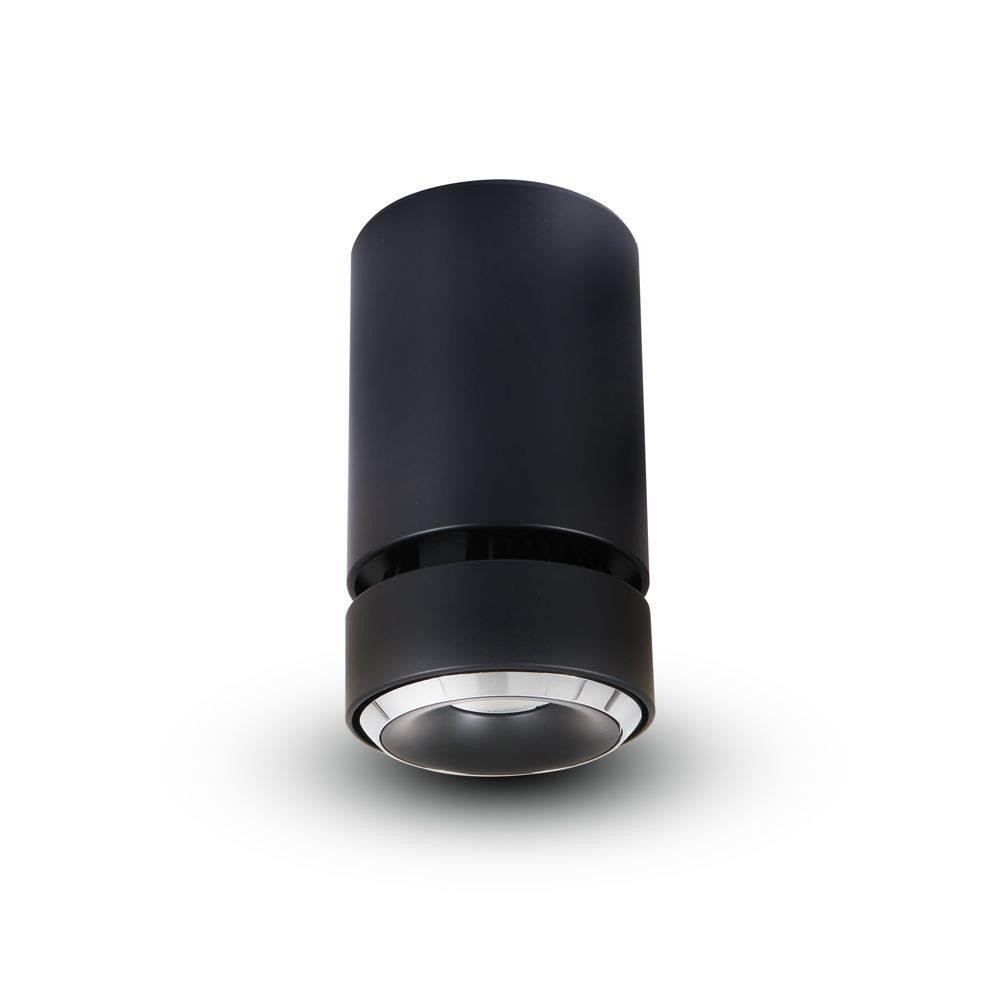

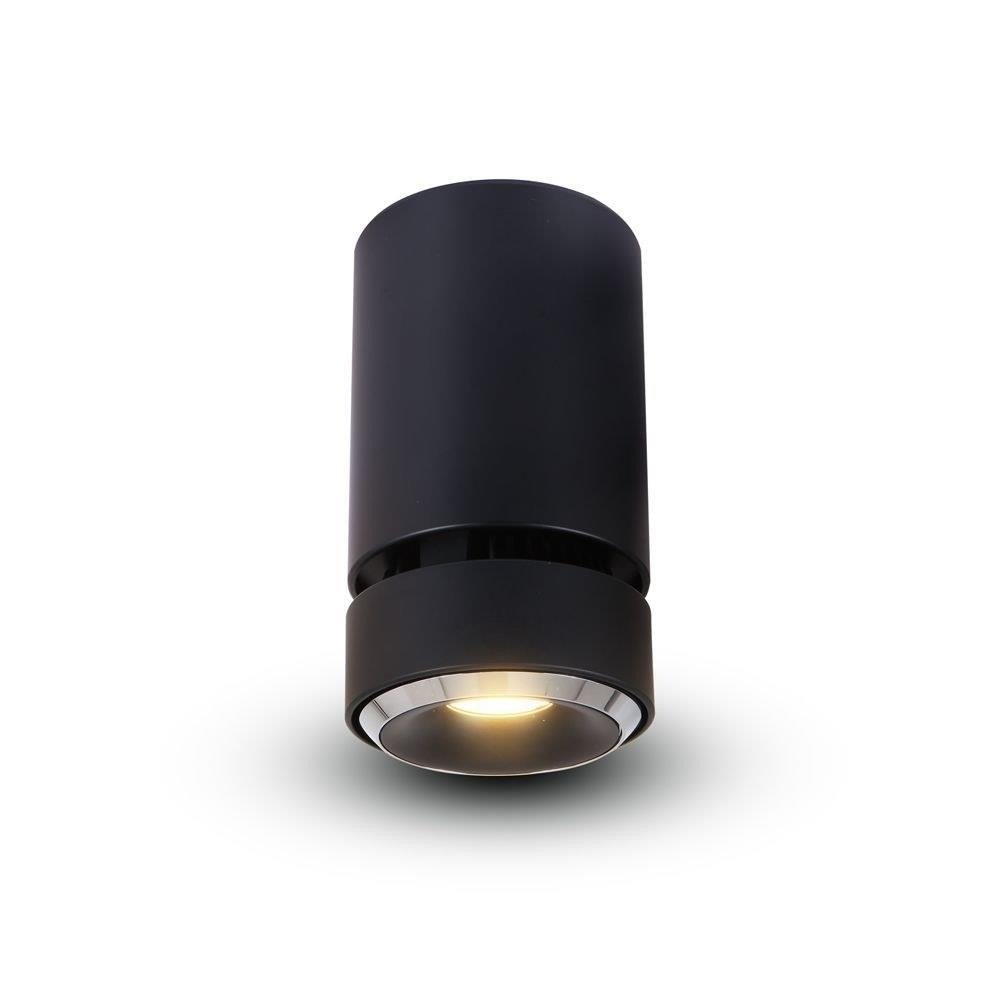

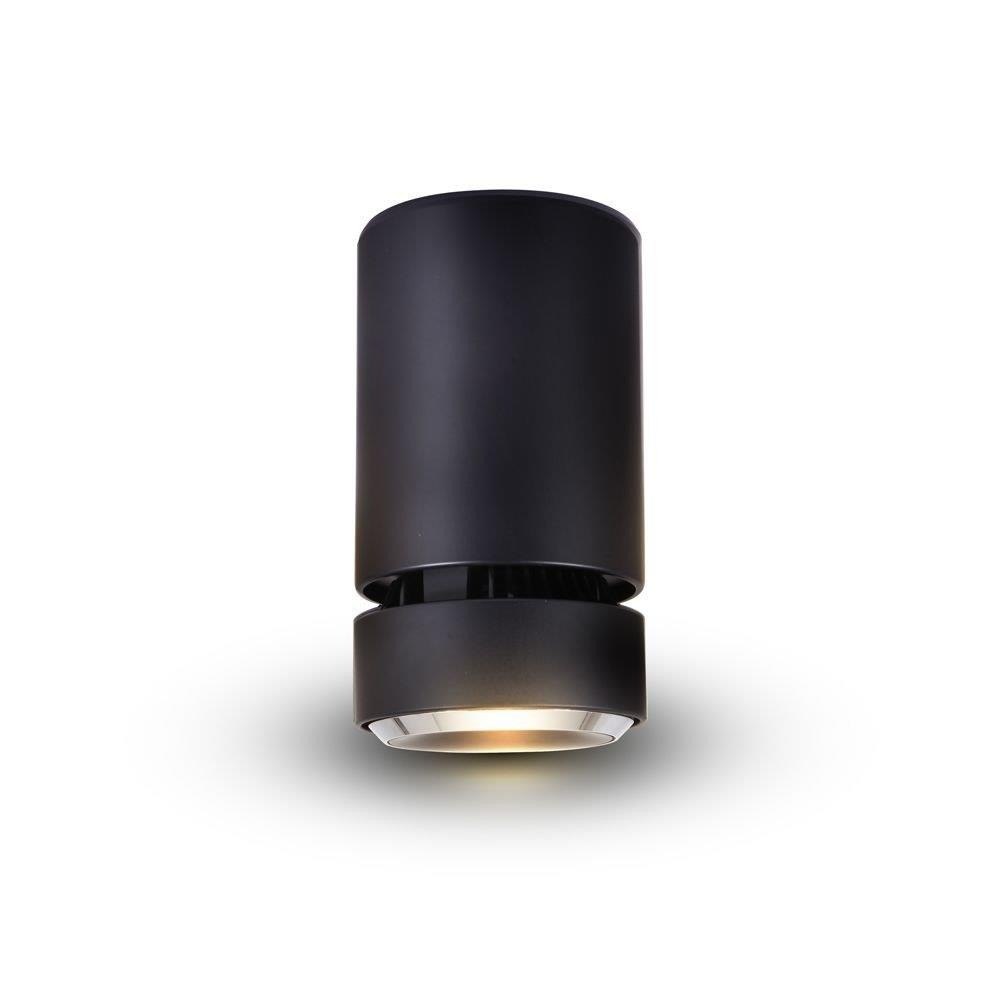

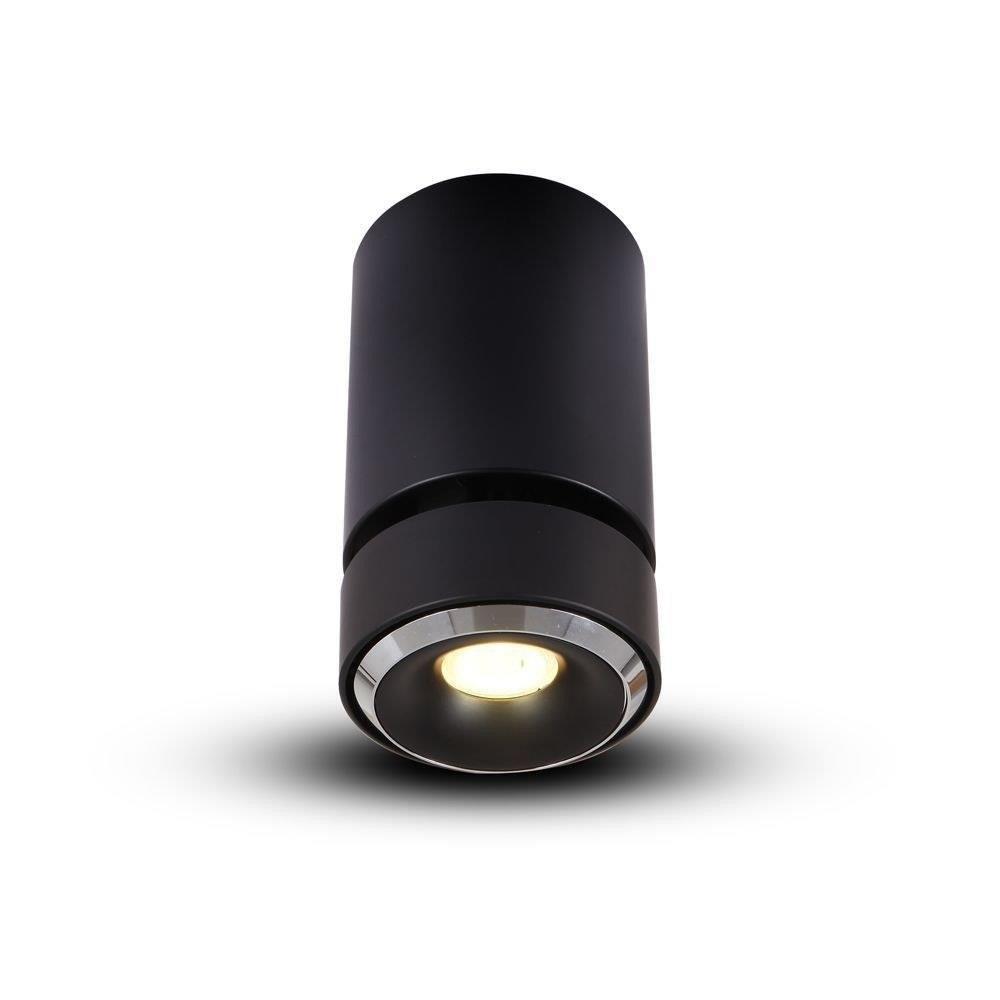

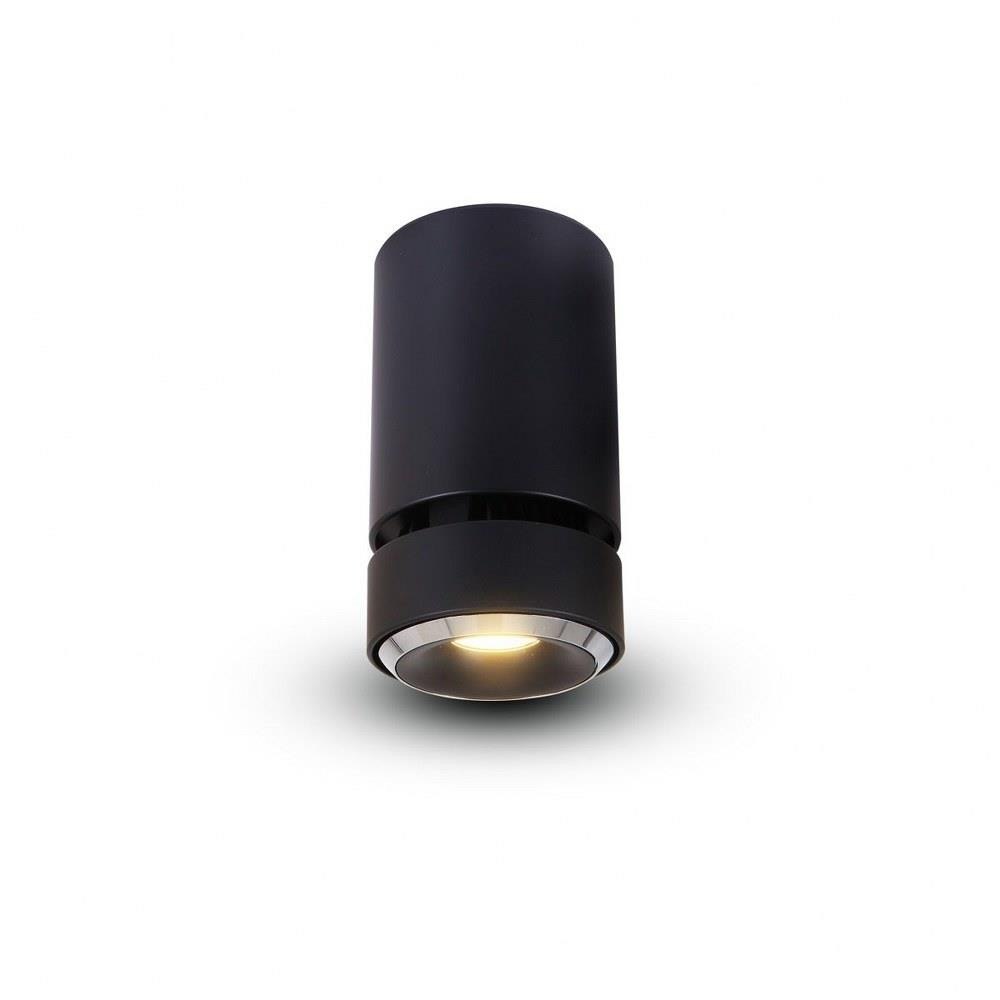

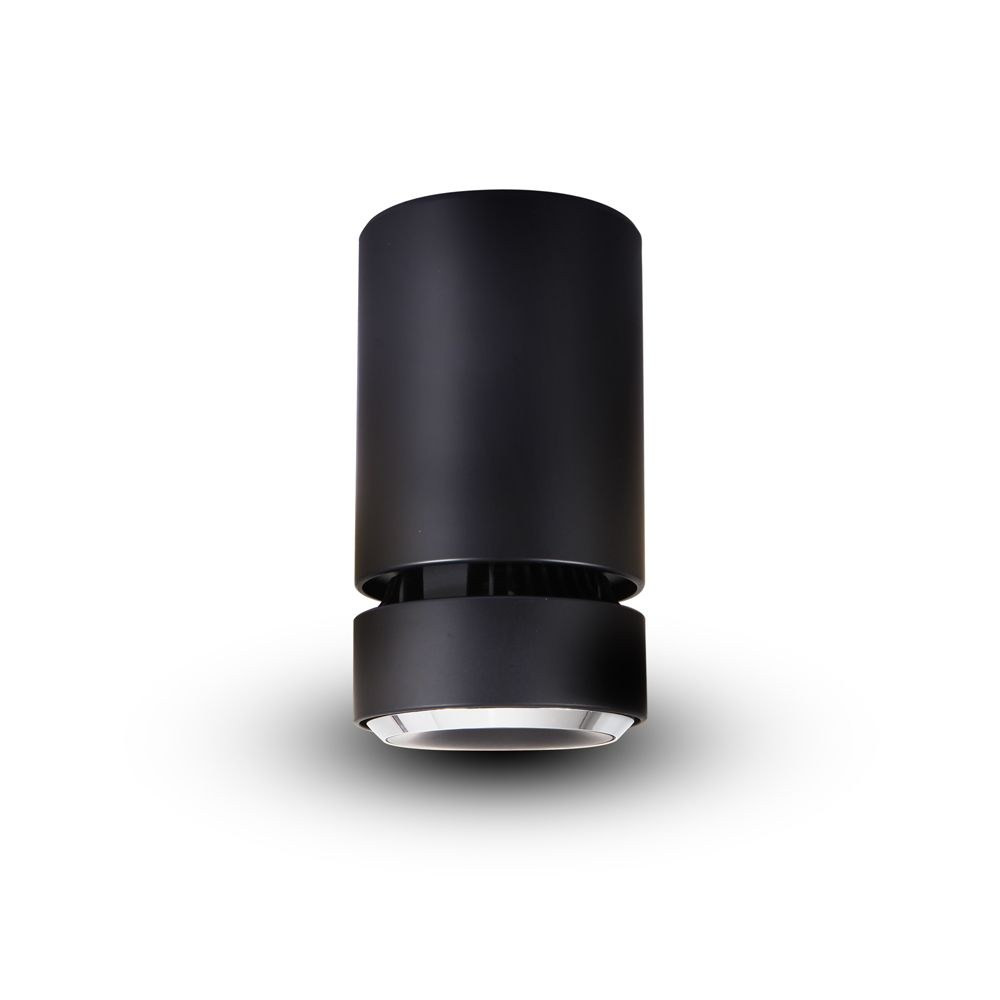

LED Surface mounted adjustable downlight, ORBIT Series

• Aluminum body structure available in 2 finishes Black and White
• Integrated LED fixture, surface mounted with remote driver (included)
• IC Rated

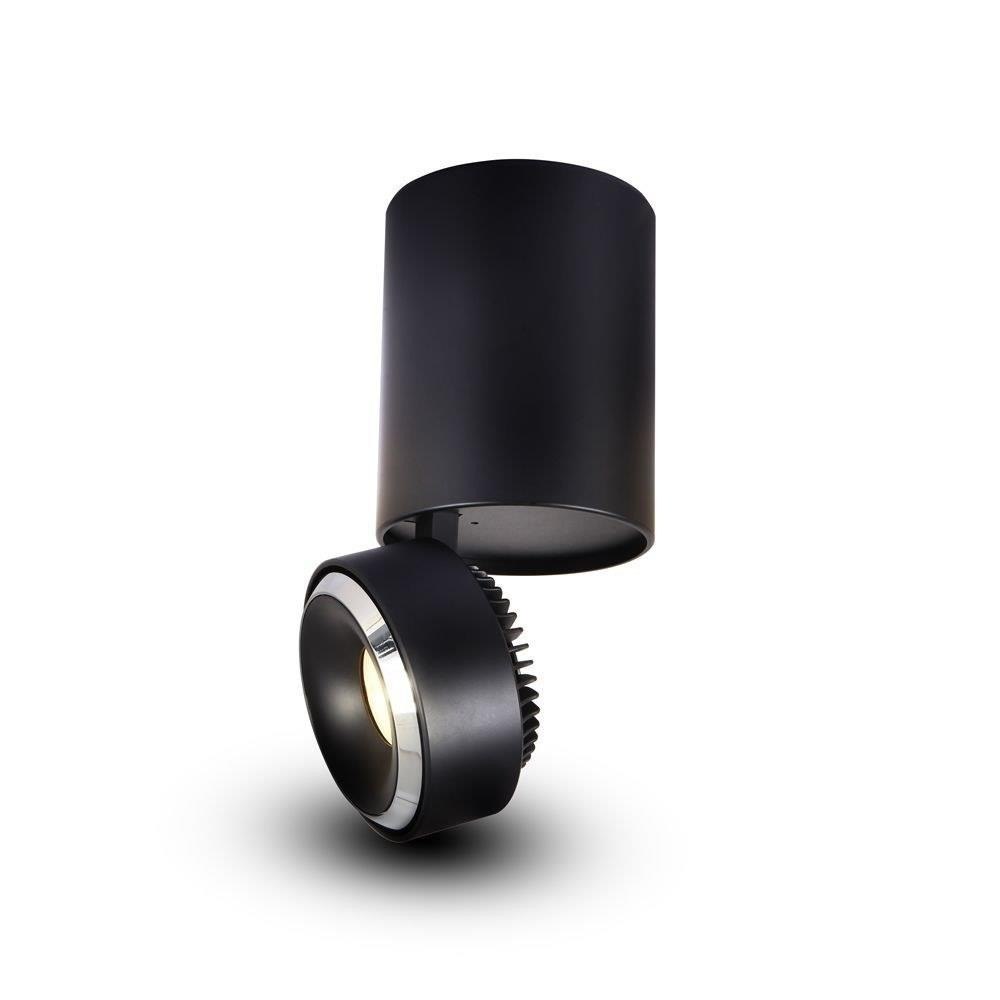

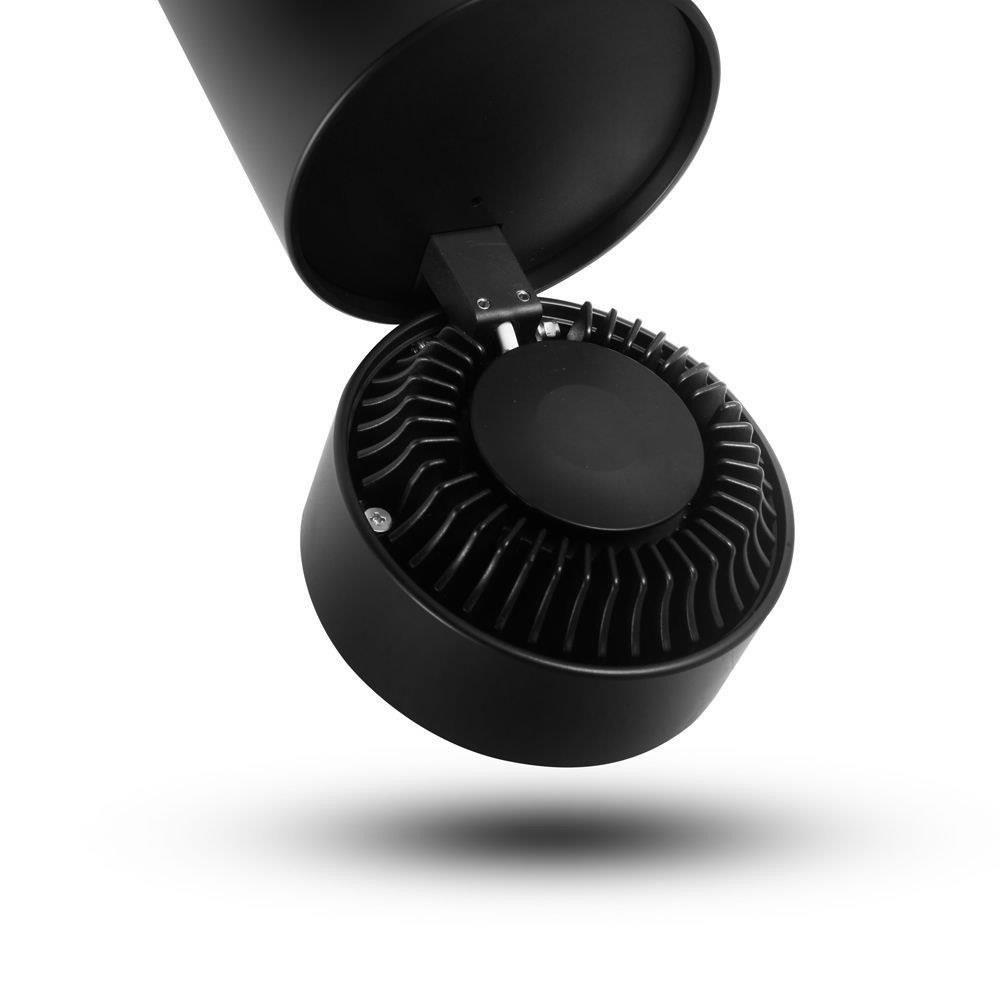

• Adjusts 350° left - right, adjusts 90° up - down
• OVERALL DIMENSIONS: 4.25" Diameter x 7.75"H
• CANOPY DIMENSIONS: 4.25" Diameter x 5.5"H
• LIGHT HEAD DIMENSIONS: 4.25" Diameter x 2.25"H
• HOLE SIZE: 0.59" Diameter

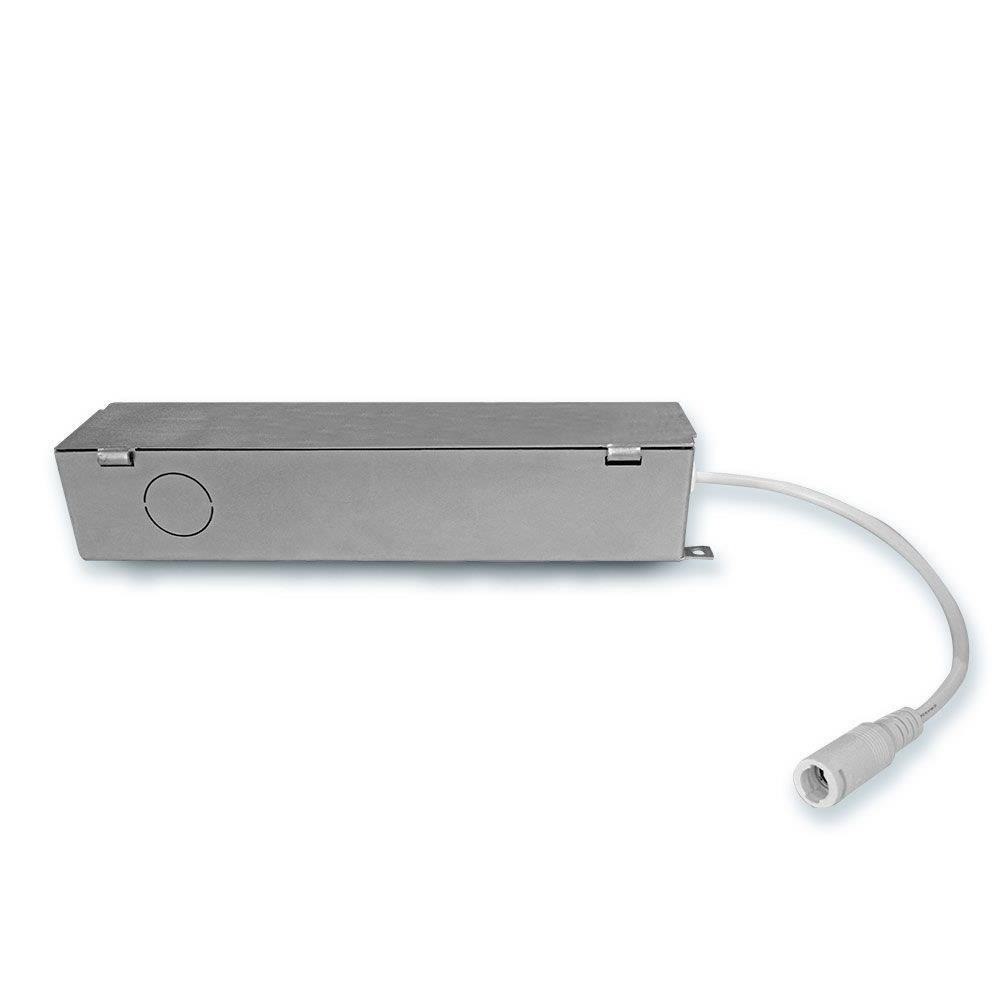

• ELECTRICAL BOX DIMENSIONS (for included remote driver): 8.46"L x 1.77"W x 1.57"H
• LENS BEAM ANGLE: offered in 3 beam angles 12° & 24°(special order required), 36°(stock beam angle)
• STOCK BEAM ANGLE: 36°
• DIMMABLE: Dimming 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 1877.85 Lumens
• WATTAGE: 20W
• VOLTAGE: 100-277V
• CRI 90: is the highest measurement of light about the accuracy of color appearance
• IP Rate: IP20 (dry rated)
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty

***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***
