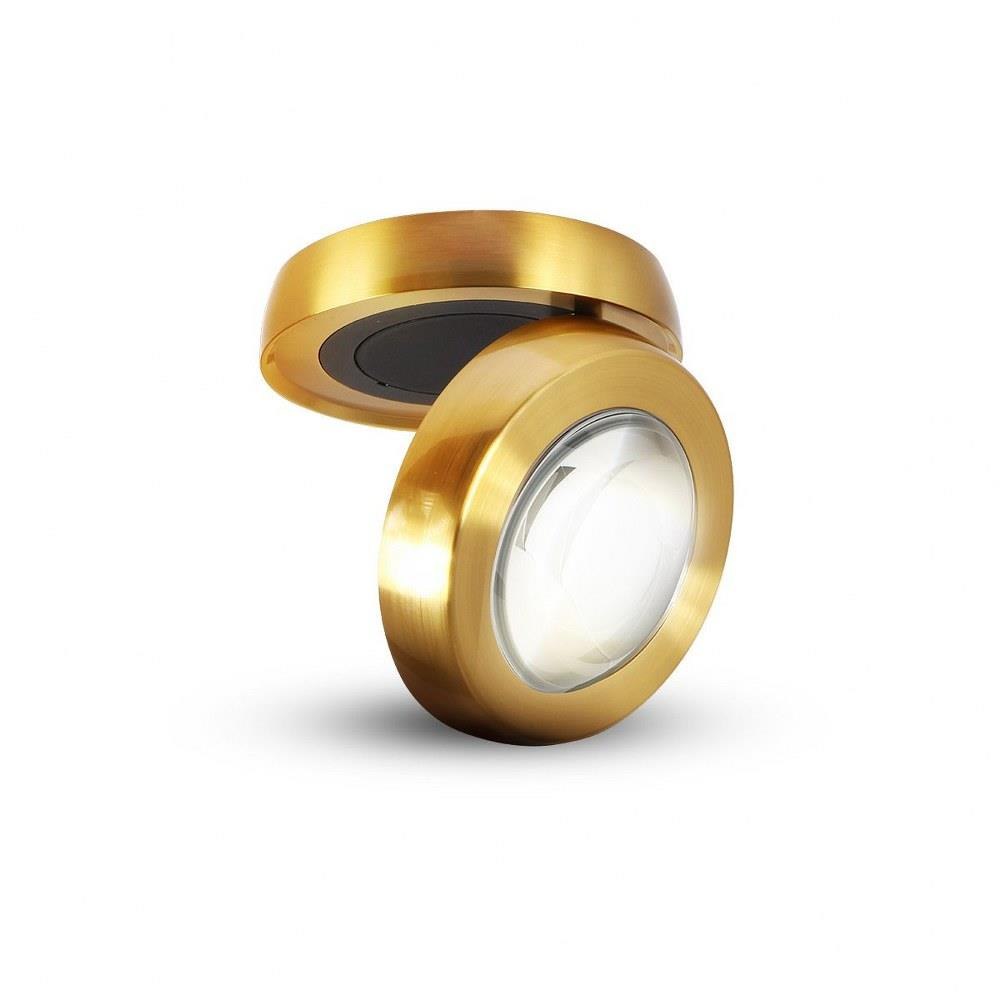

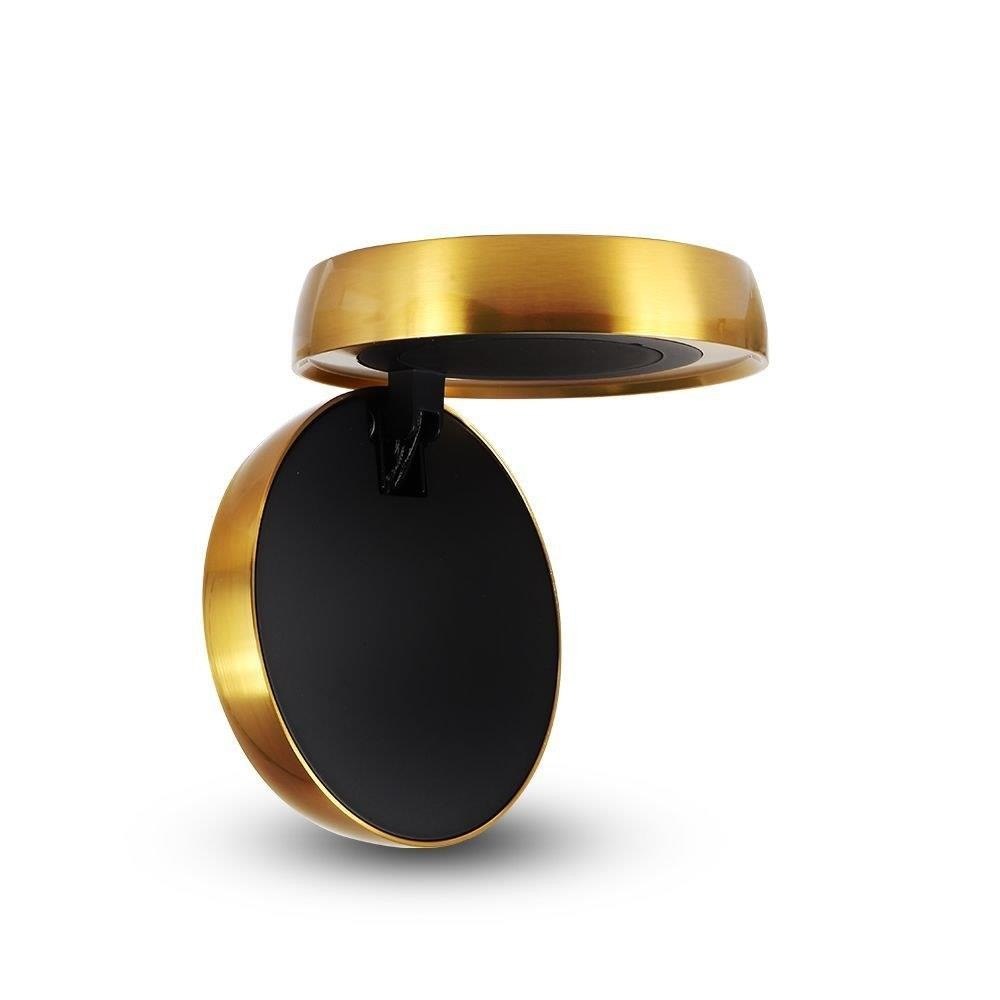

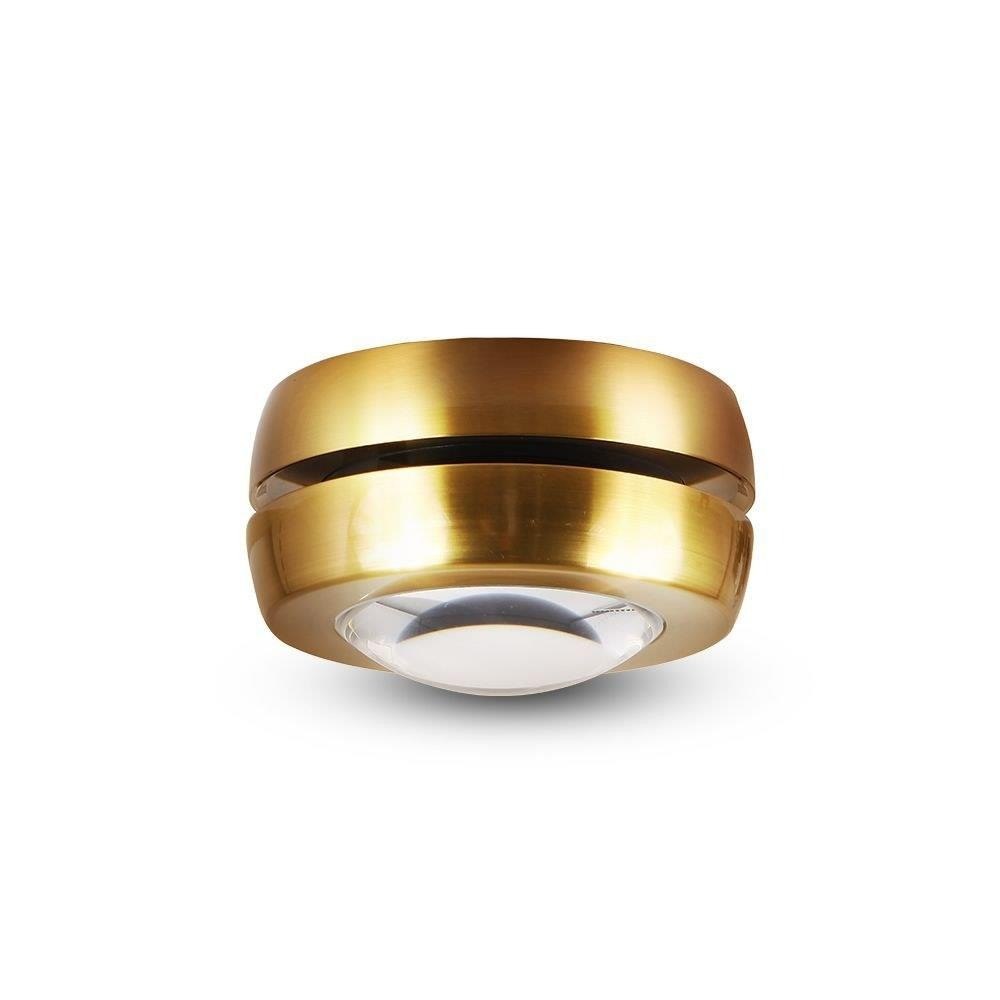

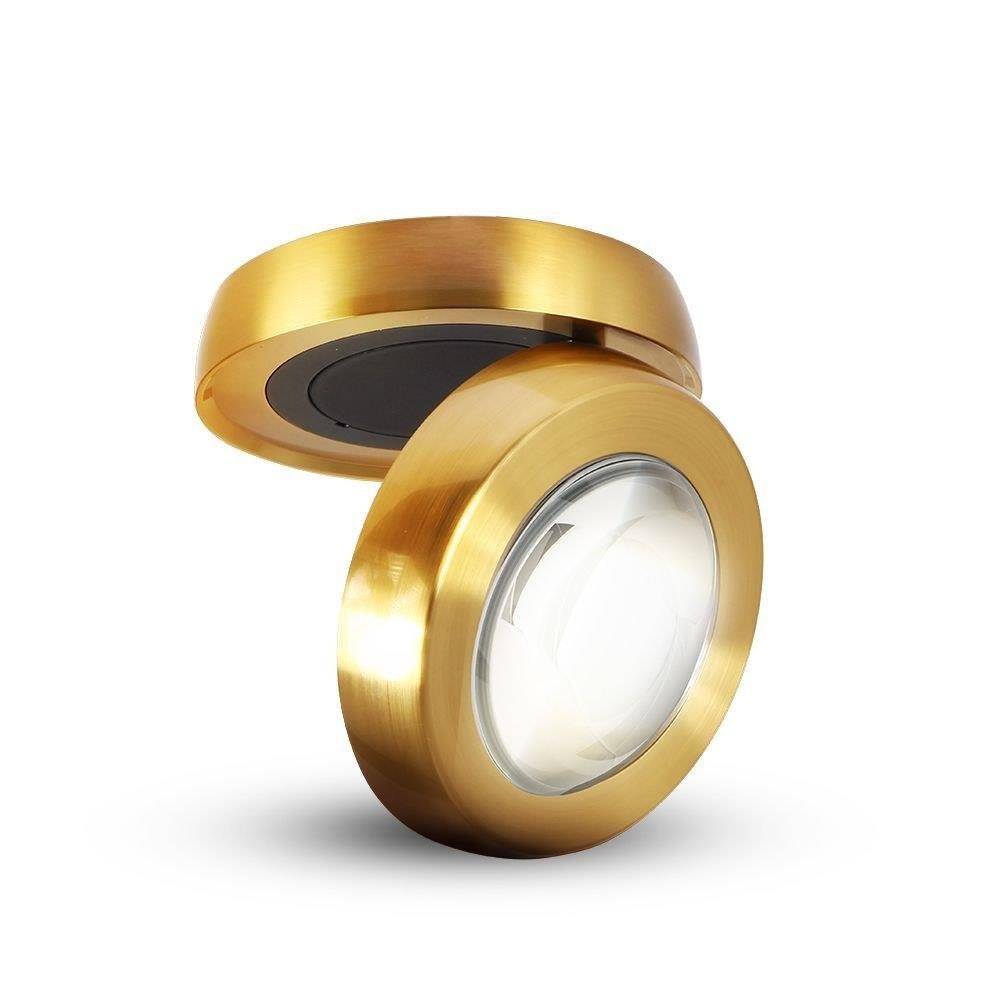

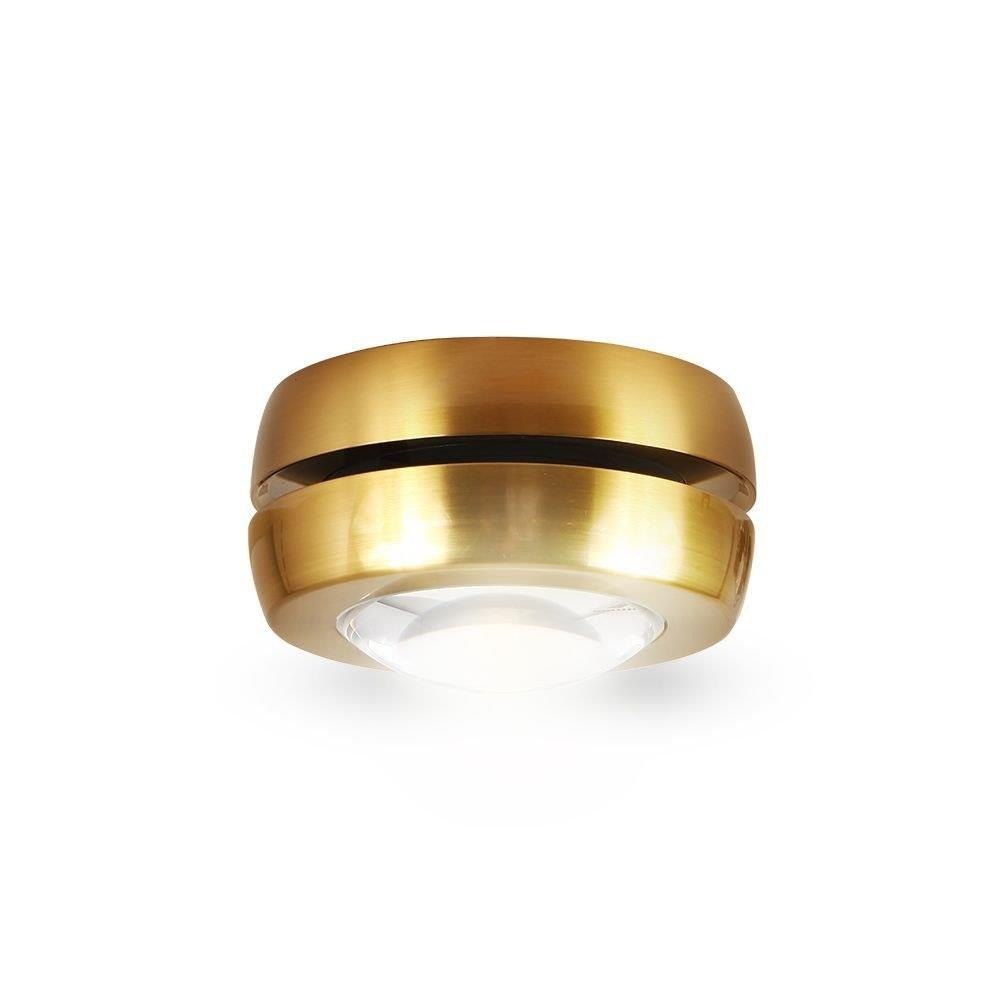

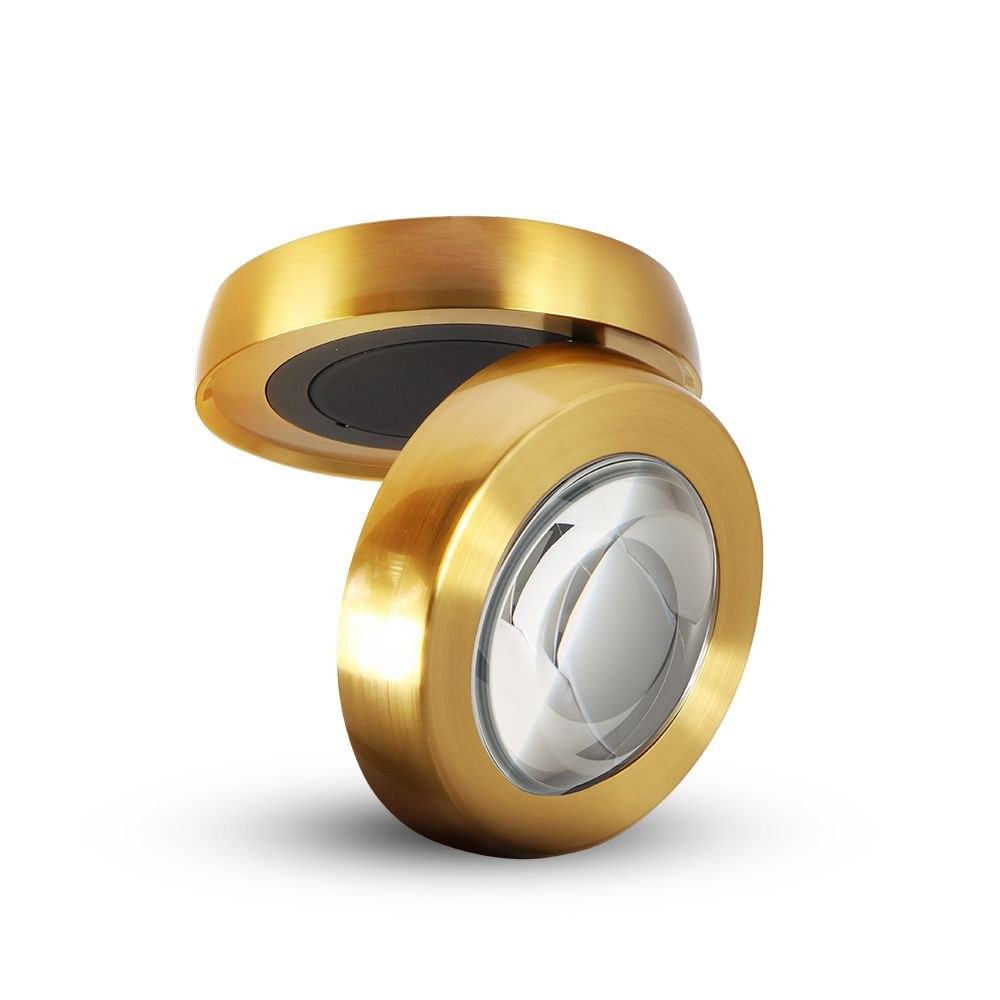

LED Adjustable wall + ceiling downlight, ORBIT Series

• Aluminum body structure available in 2 finishes Chrome and Antique Brass
• Integrated AC LED fixture (120VAC - no driver needed), surface mounted
• EASY INSTALLATION: plug and play with very little additional wiring
• IC Rated
• OVERALL DIMENSIONS: 5.25" Diameter x 3"H, adjustable to 6.5" H
• BACKPLATE DIMENSIONS: 4.75" Diameter x 0.5"H
• LIGHT HEAD DIMENSIONS: 5.25" Diameter x 1.75"H
• HOLE SIZE: 3.6"L x 1.7"W, minimum plenum space 0.25"H

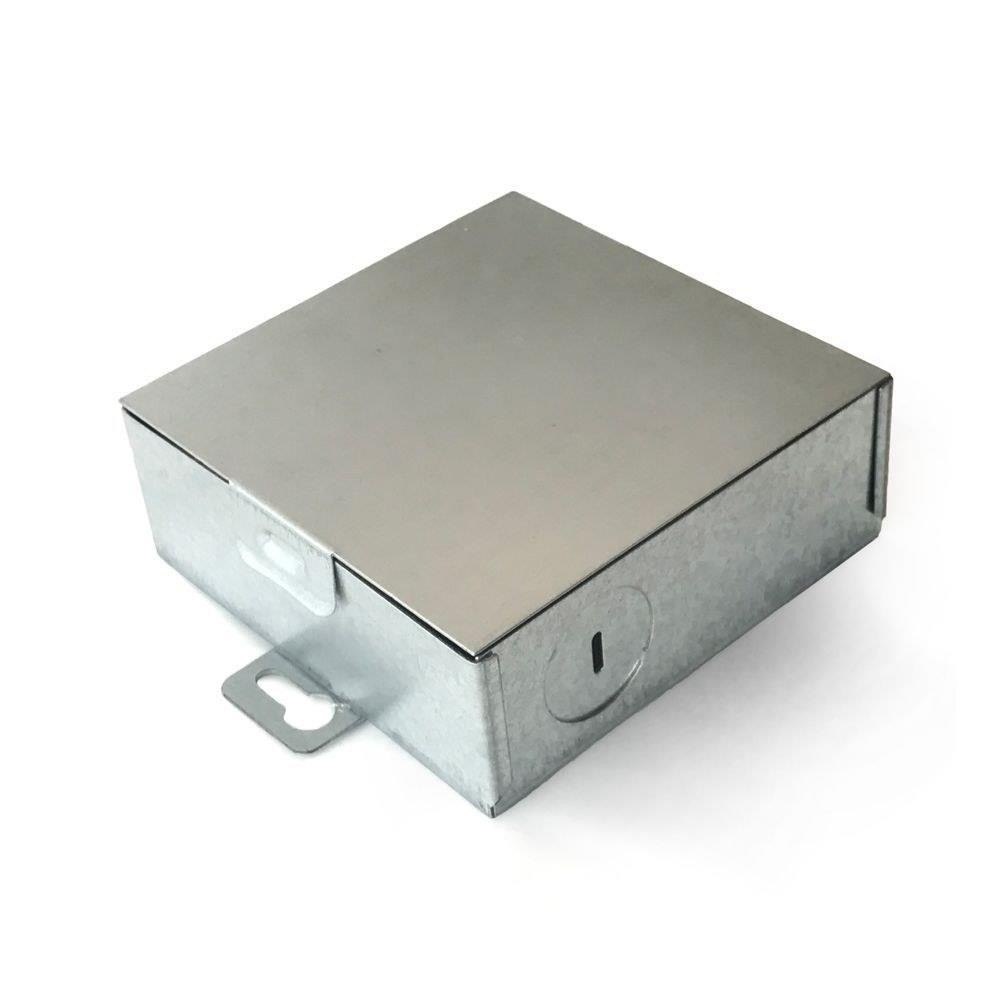

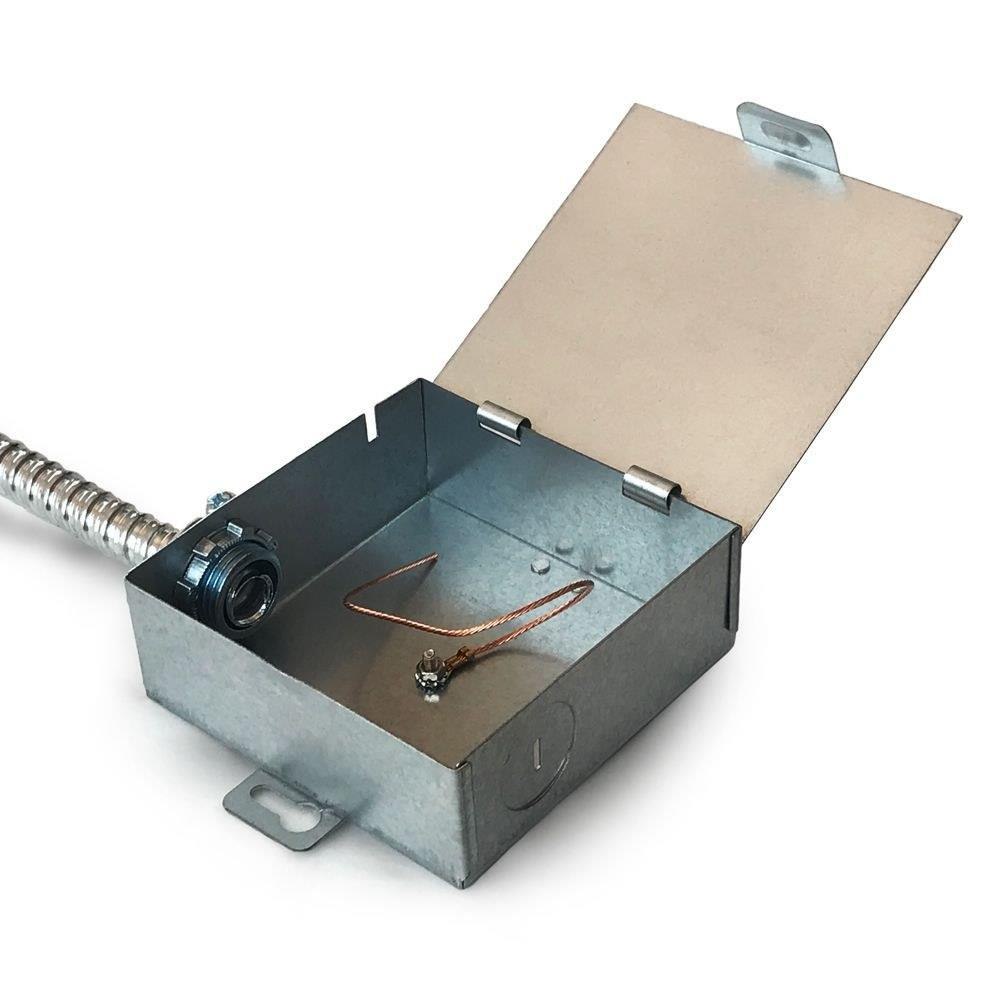

• ELECTRICAL BOX DIMENSIONS (supplied with the purchase for constructions that requires the electrical box): 4.33"L x 3.43"W x 1.34"H
• LENS BEAM ANGLE: 85°
• DIMMABLE: ELV dimming
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 312.96 Lumens
• WATTAGE: 8W
• VOLTAGE: 120V
• CRI 90: is the highest measurement of light about the accuracy of color appearance
• IP Rate: IP20 (dry rated)
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty

***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***
