Oculux Architectural is an upgrade to the Oculux recessed downlight, offering an increased variety of specification options. Featuring an 30 Deg Adjustable LED light engine with greater CCT selections along with Round and Square invisible trim and pinhole options. Oculux Architectural includes a single SKU selection for IC-Rated Airtight New Construction Housing with LED Light Engine along with a variety of trim options to select from. Energy Star Rated and CEC Title 24 Compliant with wet location listing means that Oculux can be installed in a broad range of applications. 35 Degree visual cutoff provides superb glare reduction.

Durable Construction:

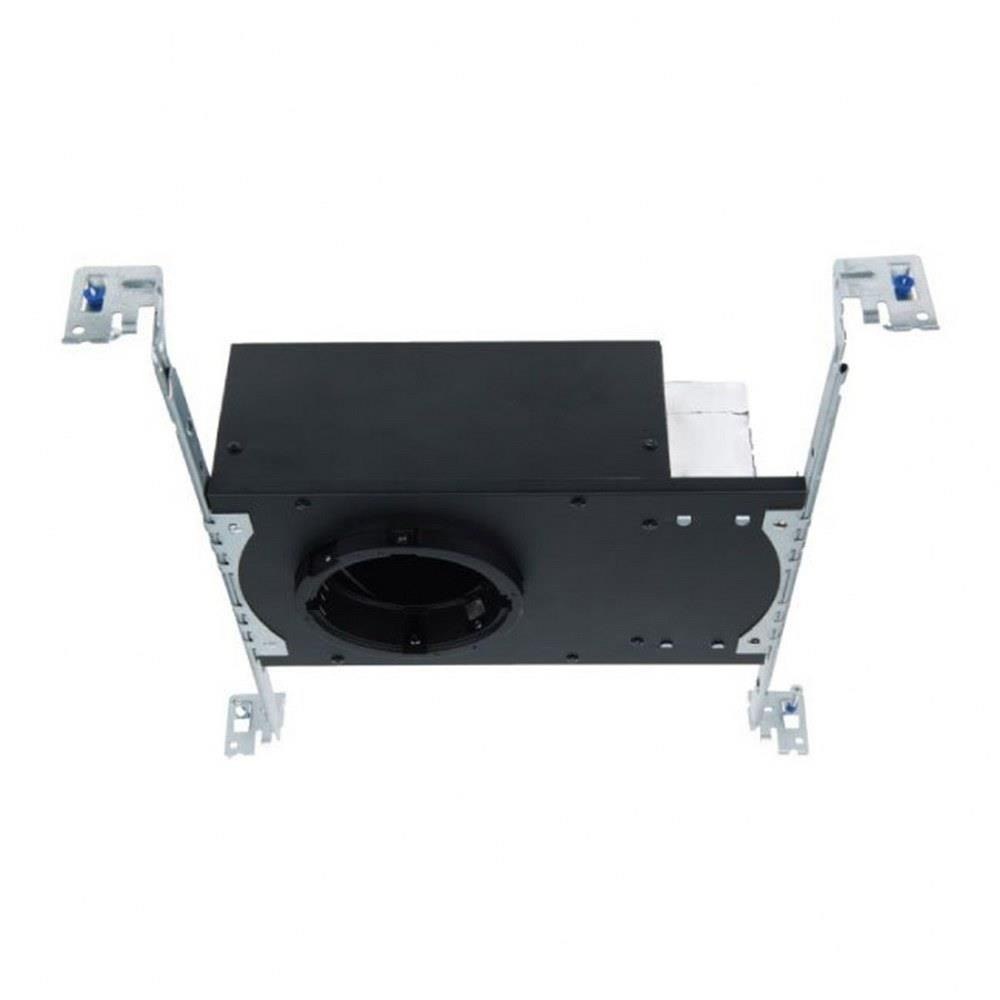

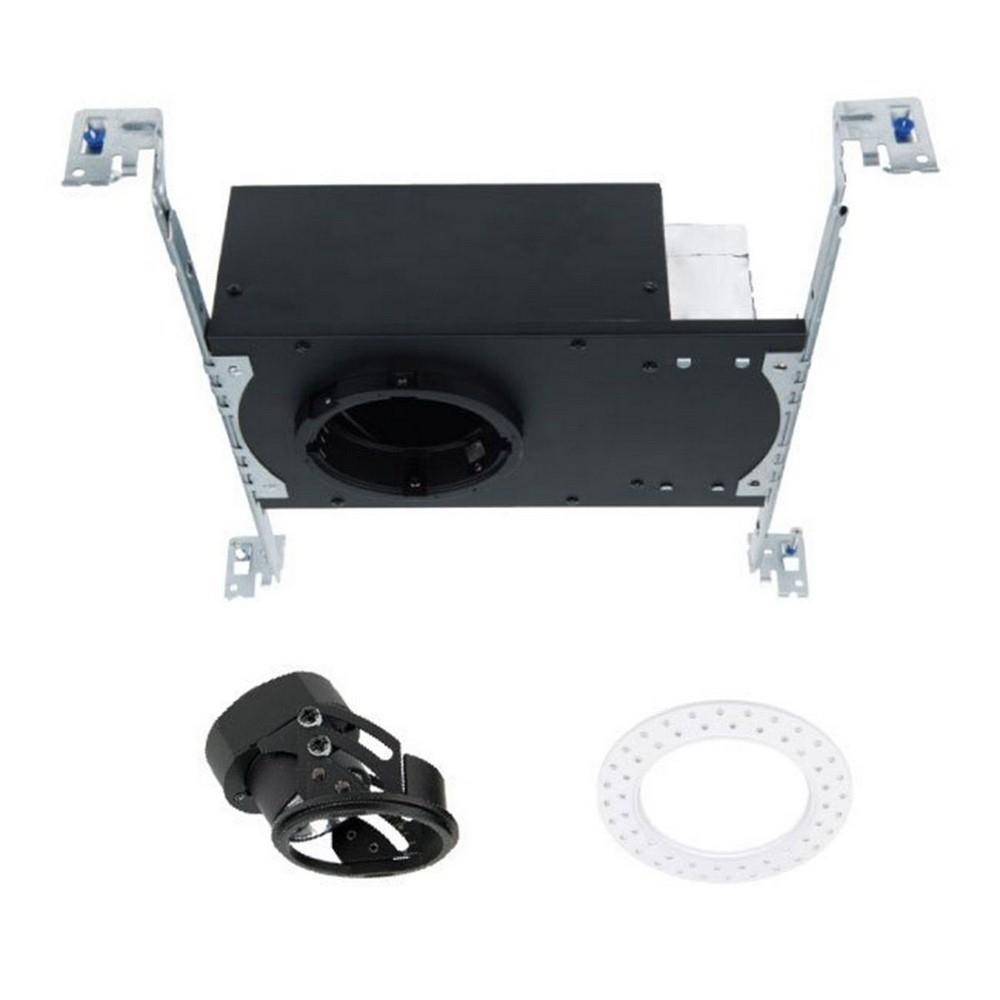

• IC-Rated Airtight Housing and 30 Deg Adjustable LED light engine are sold as a complete unit with choice of Color Temperature and Round or Square options.
• Trims are sold separately. For Remodel options, refer to the standard 3.5in Oculux.
• Available in Round or Square open reflector, adjustable, pinhole, and invisible trim options.

Features:

• Ultimate dimming versatility: Smooth and continuous dimming with an ELV, TRIAC, or 0-10V Dimmer.
• High Powered LED: Color Temperature: 2700K, 3000K, 3500K, or 4000K
• Voltage: 120V, 220V, or 277V Input with Universal Housing.
• Color Temperature: 2700
• Lumens: 855
• CRI: 90
• Rated Life: 50000 Hours
• Beam Spread: 51
• Shade Included: Yes
• Dimmable: Yes

Ratings and Certifications:

• Standards: ETL & cETL Wet location listed
• Energy Star and CEC Title 24 Compliant
• Warranty: 5 Years Functional/2 Years Finish
