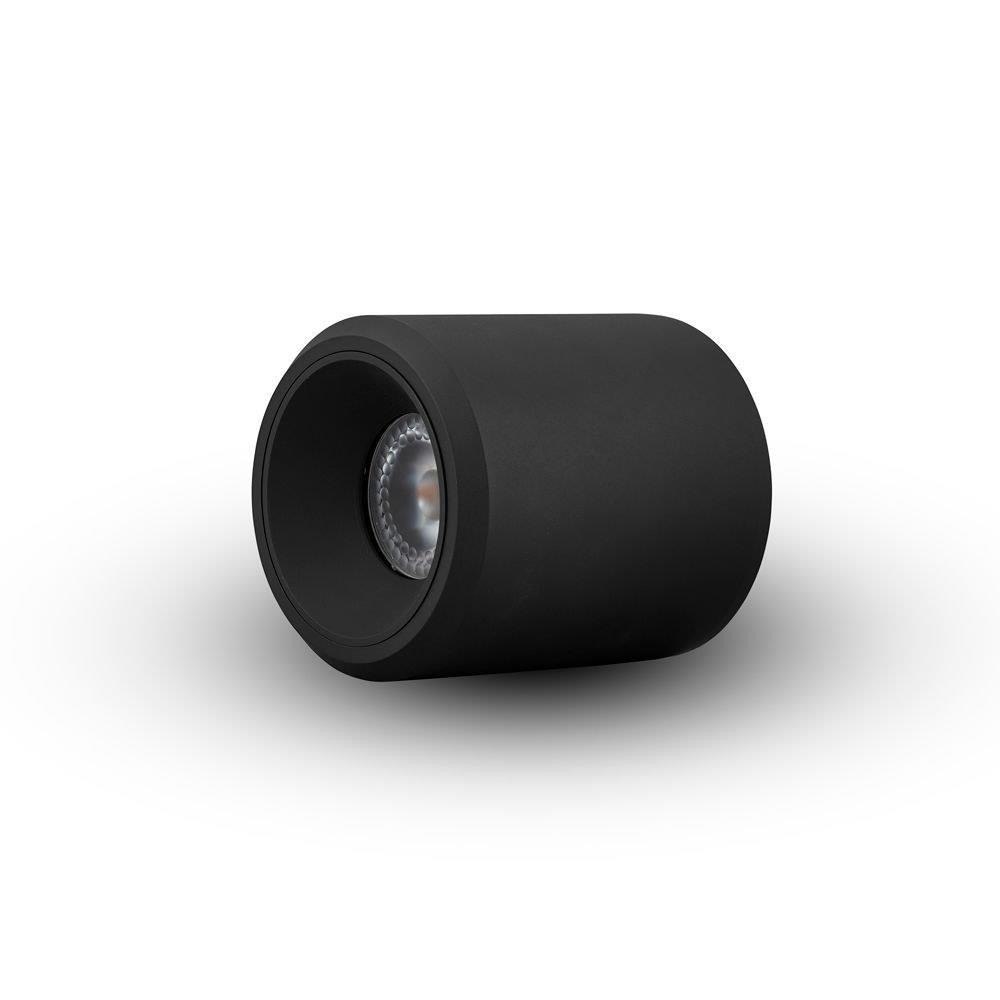

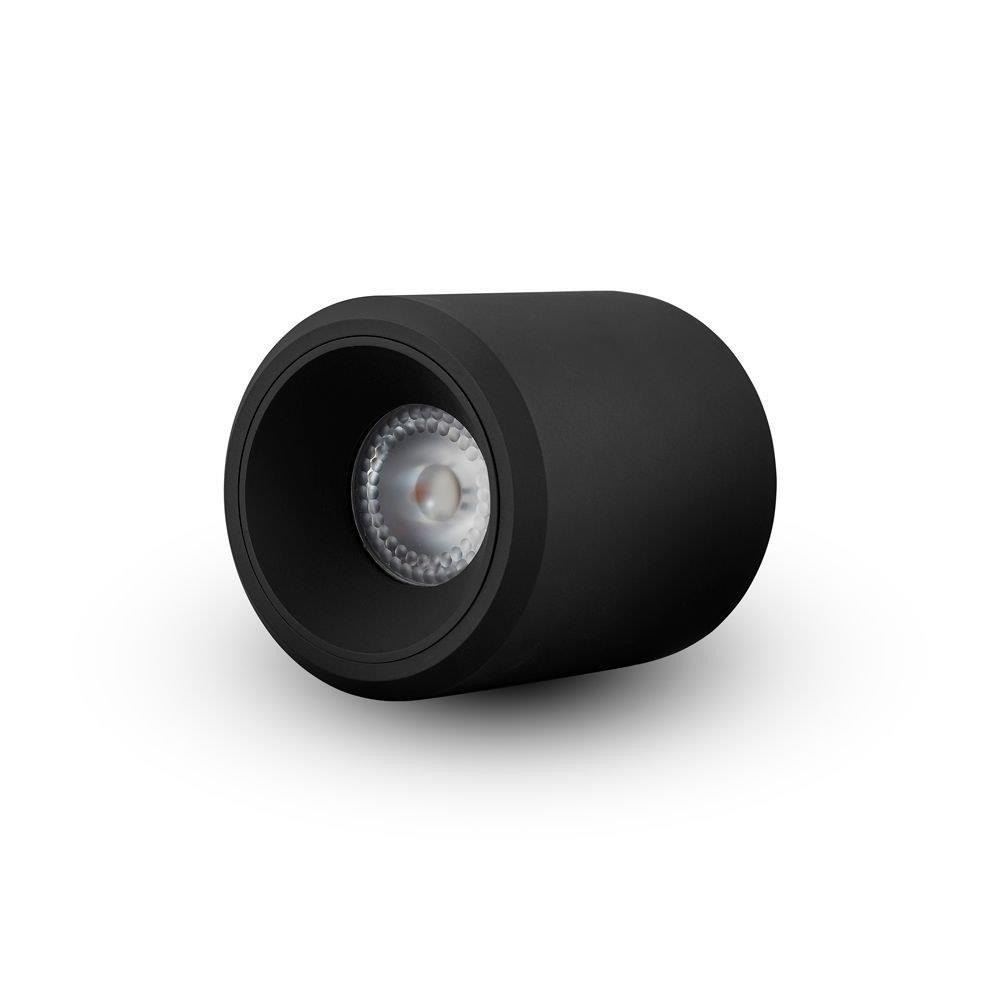

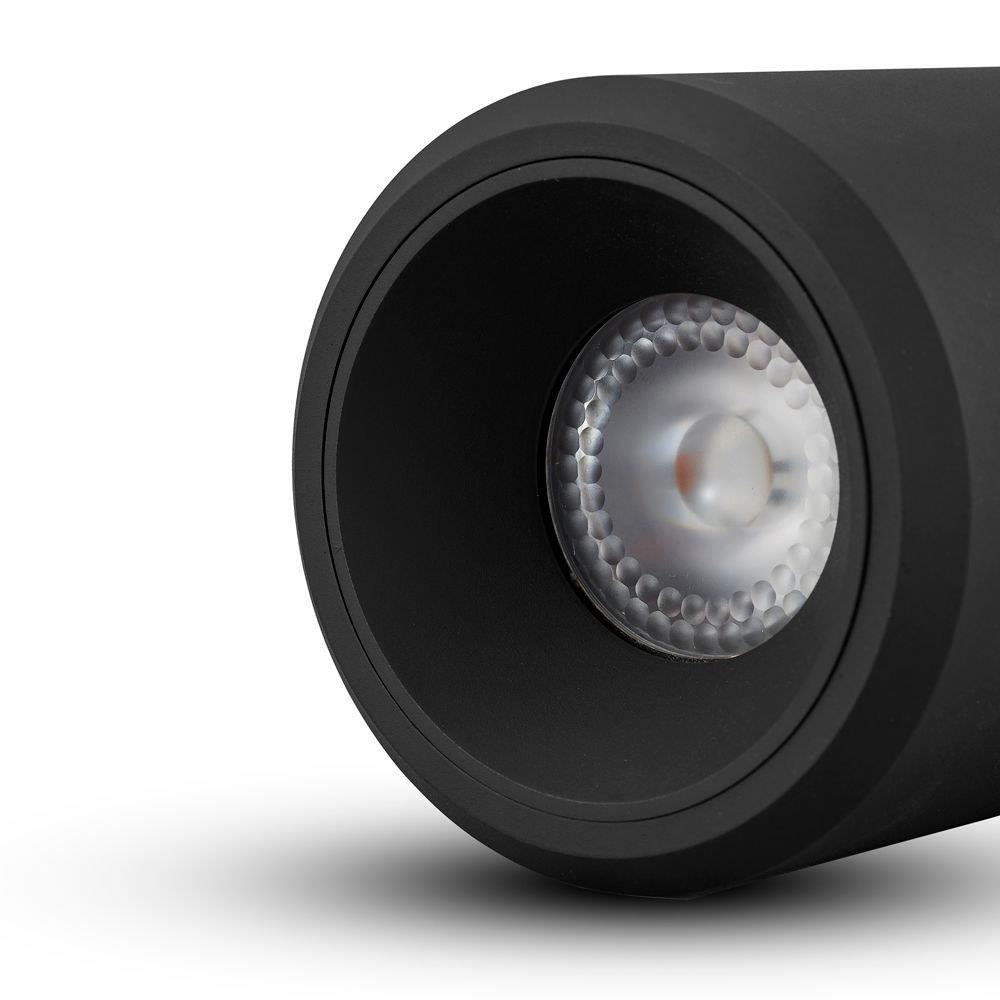

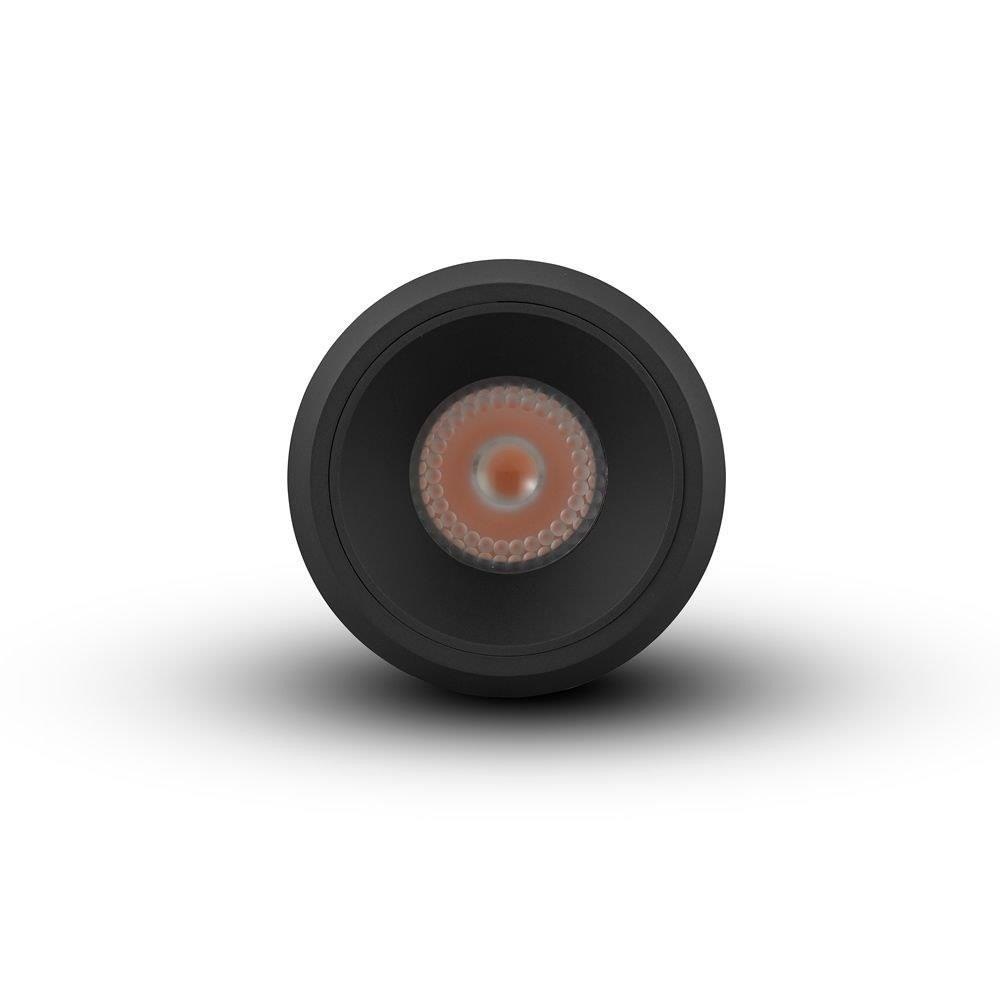

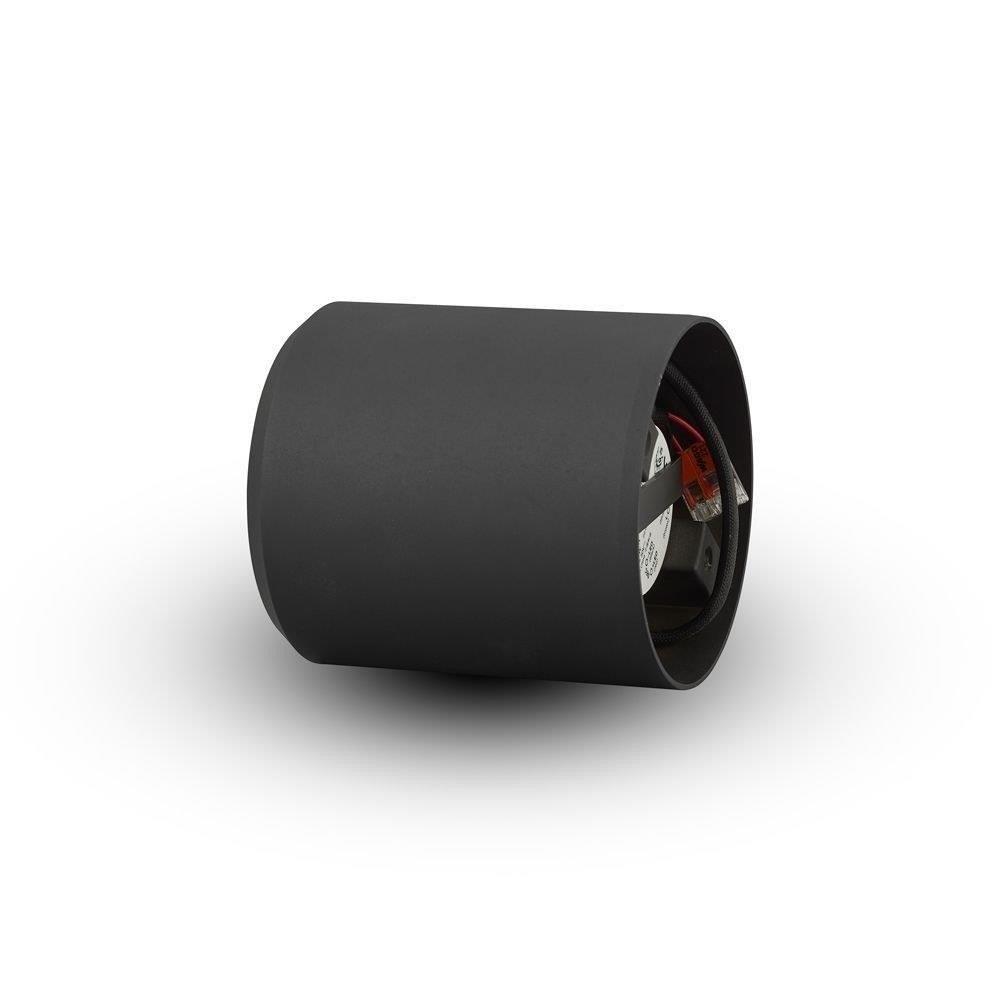

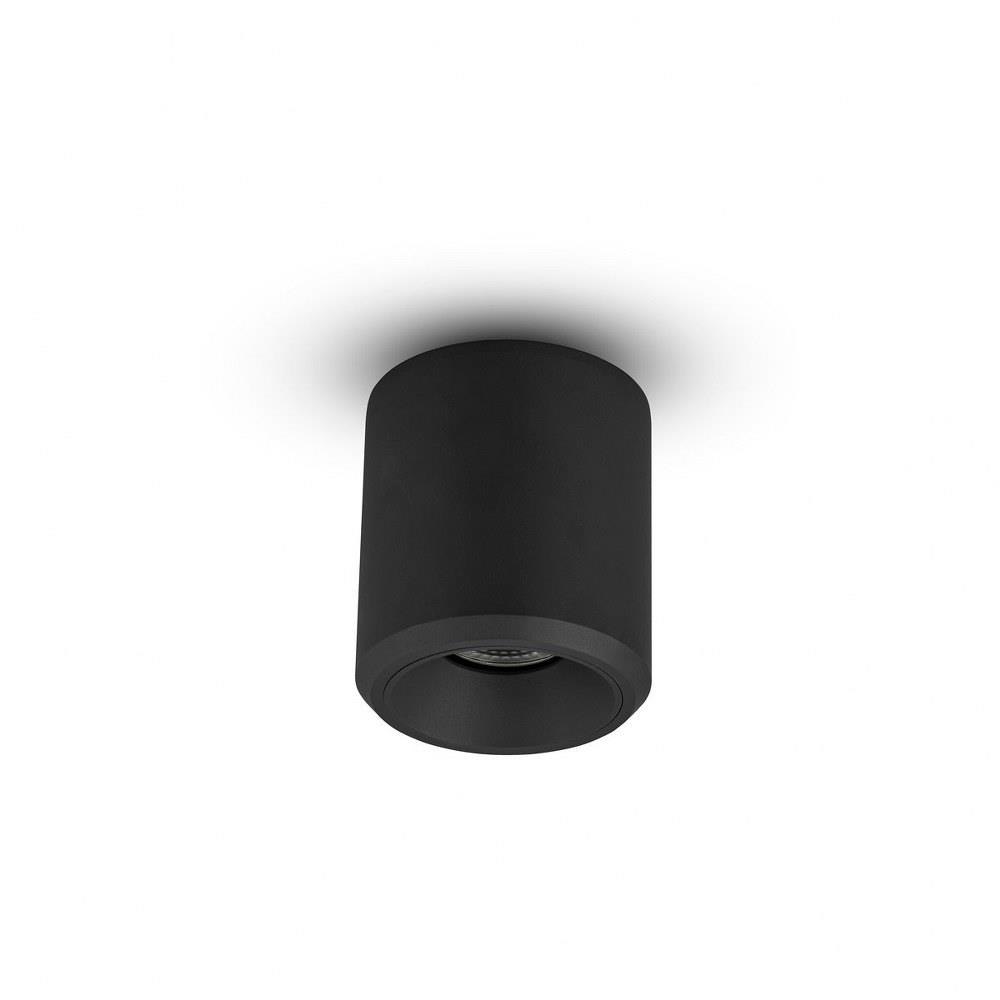

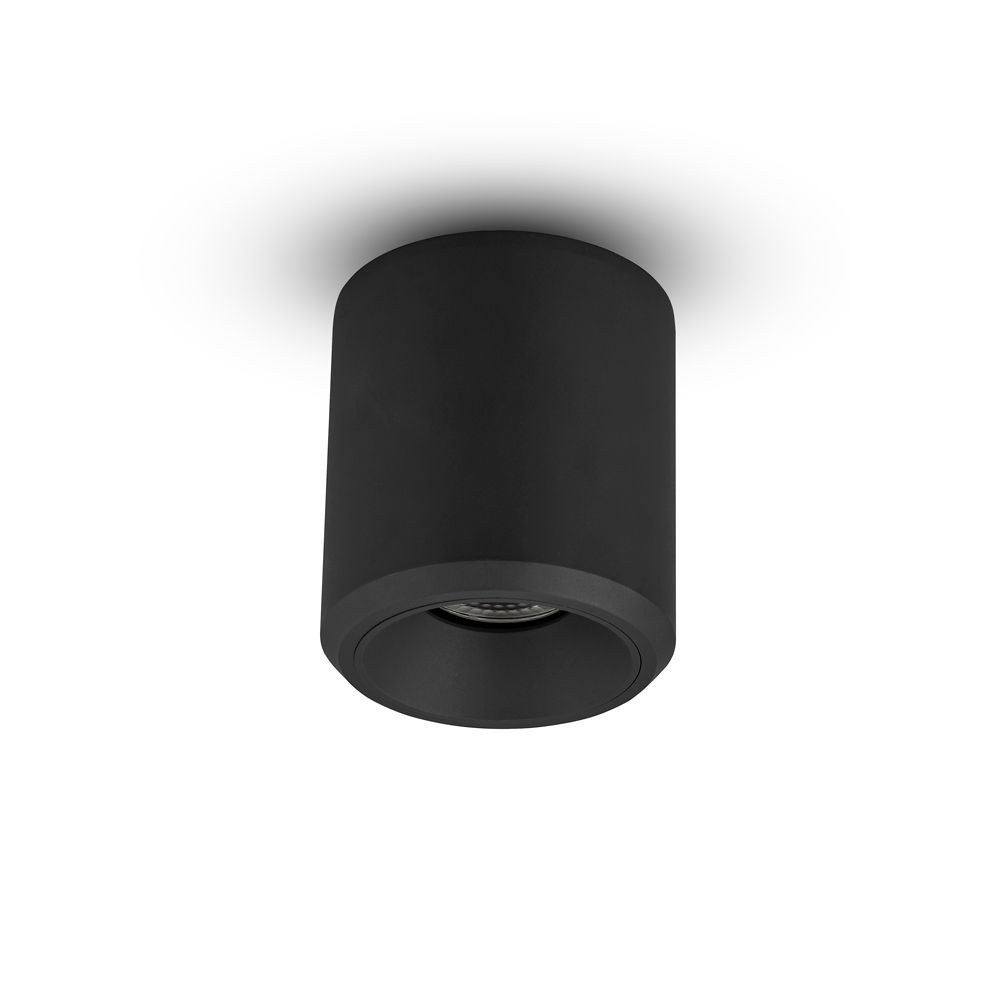

LED Surface mounted downlight, NODE Series

• Aluminum body structure available in 2 finishes Black and White
• Integrated LED fixture, surface mounted with remote driver (included)
• IC Rated
• DIMENSIONS: 3.5" Diameter x 4"H
• HOLE SIZE: 0.59" Diameter

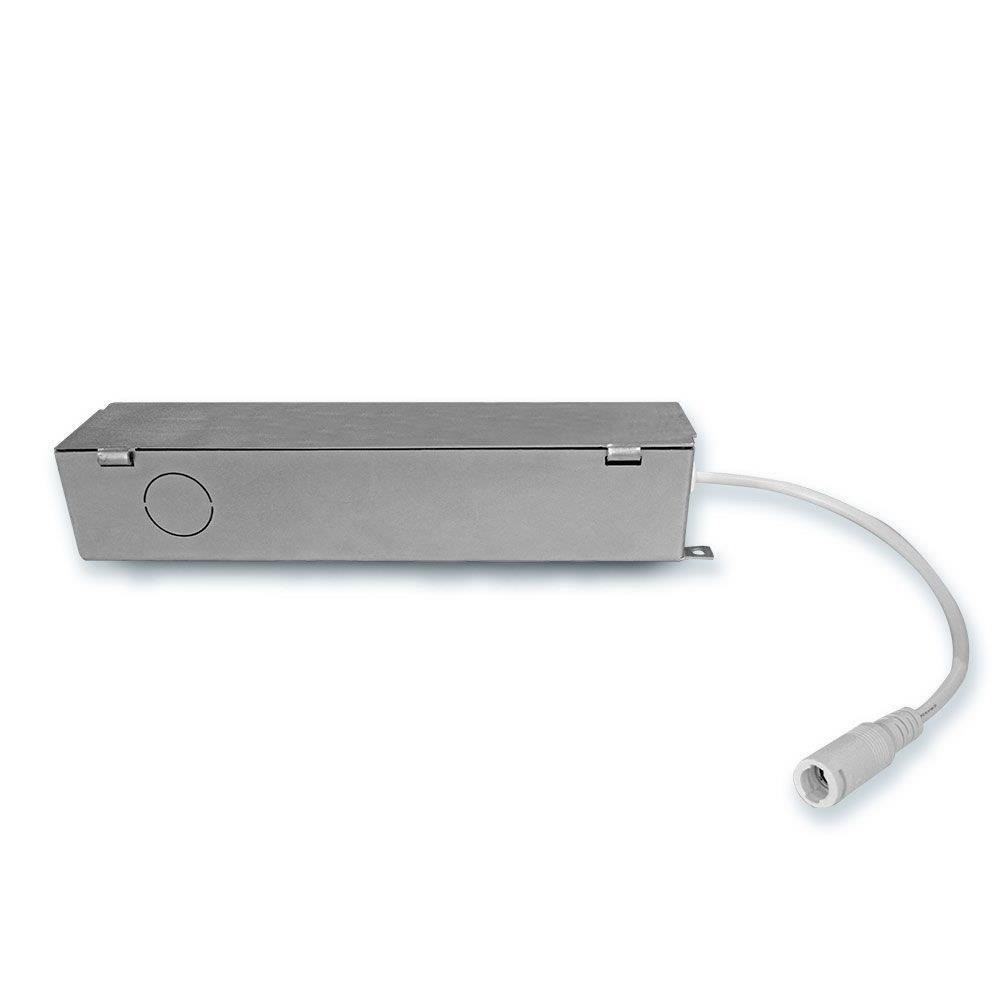

• ELECTRICAL BOX DIMENSIONS (for included remote driver): 8.46"L x 1.77"W x 1.57"H
• LENS BEAM ANGLE: offered in 4 beam angles 14°, 19° & 40°(special order required), 33°(stock beam angle)
• STOCK BEAM ANGLE: 33°
• DIMMABLE: Dimming 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 865.76 Lumens
• WATTAGE: 12W
• VOLTAGE: 100-277V
• CRI 90: is the highest measurement of light about the accuracy of color appearance
• IP Rate: IP20 (dry rated)
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty

***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***
