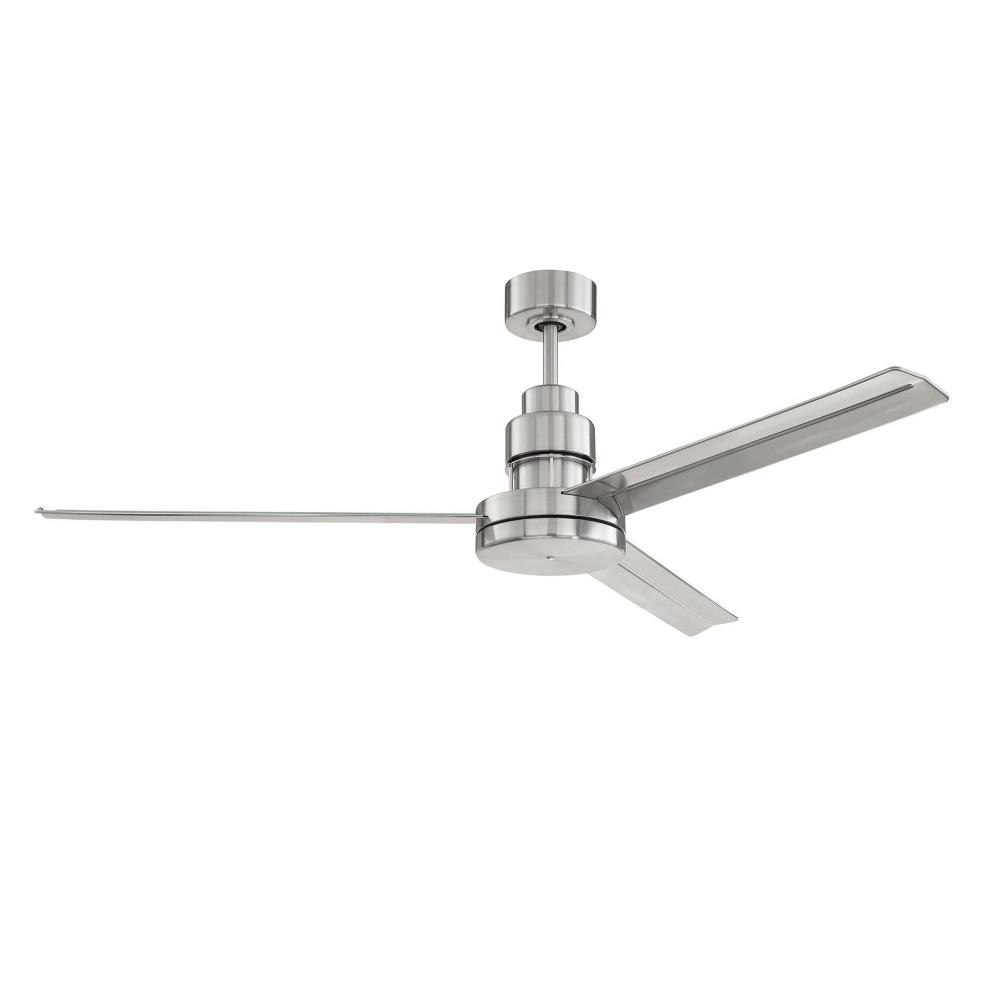

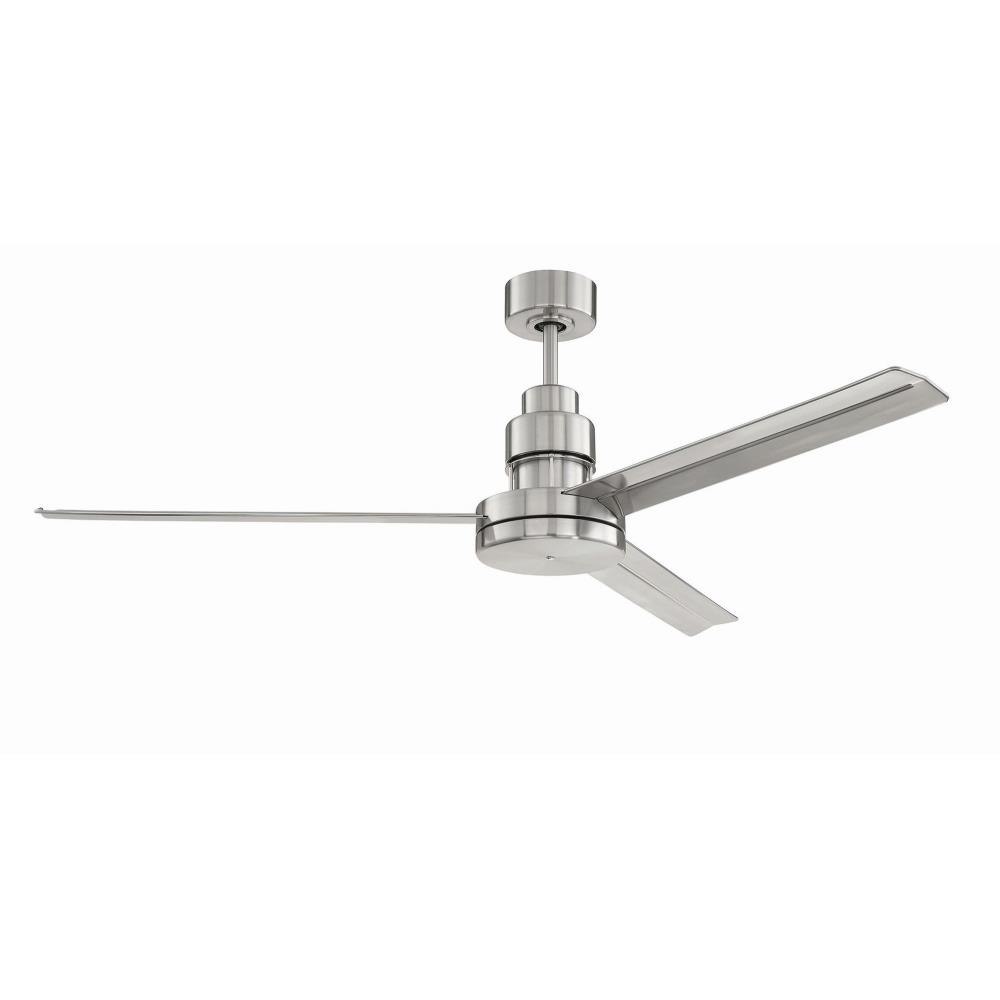

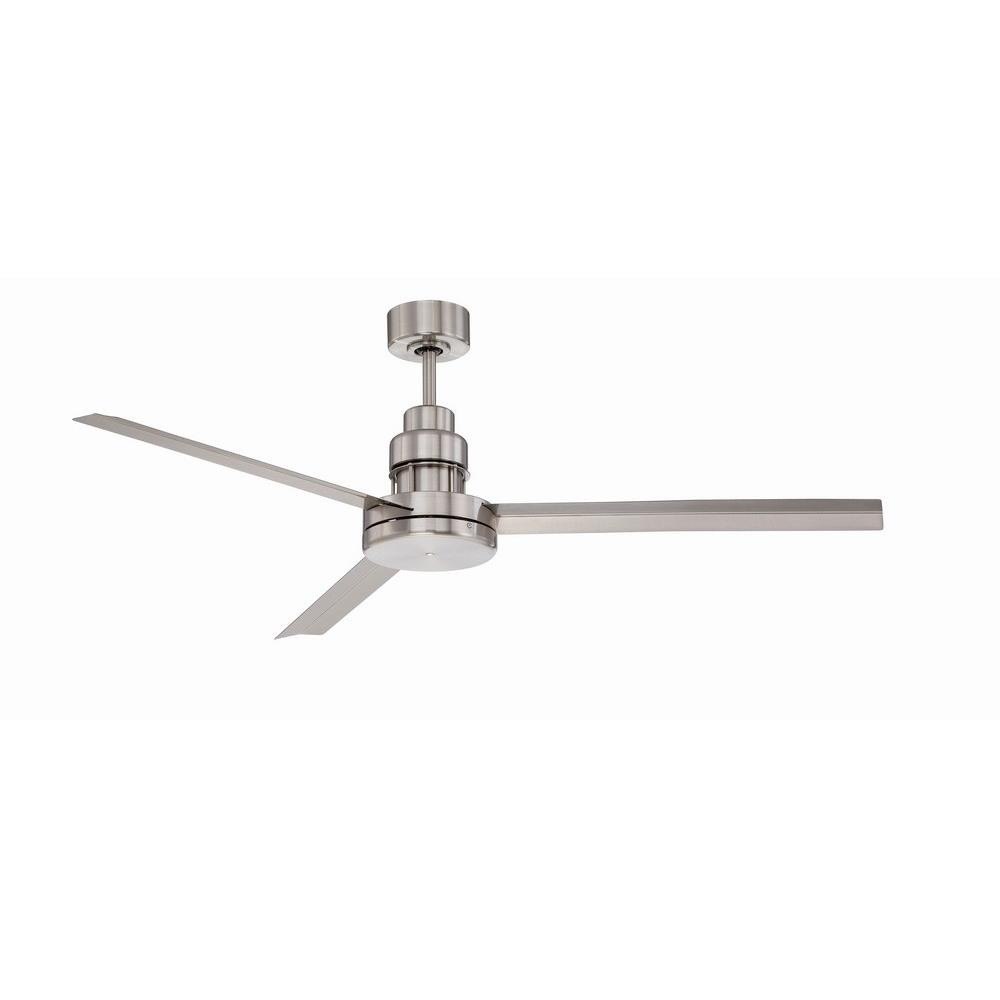

The Mondo 54” is just a smaller version of its 72” cousin which utilizes Craftmade’s second generation 6 speed reversible DC motor and includes both wall and hand-held remote controls. This 13 degree pitch fan is uni-packed with 3 aluminum blades shaped to really move the air. This fan is light kit adaptable and is damp location rated.

Canopy Included: TRUE
Canopy Diameter: 5.12
Rod Length(s): 6.00
Warranty: Limited Lifetime

Why to choose a direct current motor fan?

Brand new technology
Better control of different speeds (more speed settings typically 6)
At least 70% more efficient than AC motors
Virtually Silent - Electromagnetic noise is eliminated, less prone to the buzzes that can appear on cheaper AC ceiling fans and also quicker starting
Uses fixed magnets that take part of work load off rest of motor
Fan calibrates itself when first installing, blades go through a series of movements learning the load.
Motor is generally more compact and lighter, which allows for a slimmer motor design.

SKU: MND54BNK3

Dimensions

Stem/Rod Number and Lengths Included: 1-6
Width: 54 in
Height: 15.51 in
Canopy Height: 2.2 in
Wire Length: 80 in
Blade to Ceiling Height: 13.51 in
Length: 14.4 in
Canopy Length: 5.12 in

Product Details

Control Type: Handheld
Application: Indoor
Power Source: Hardwire
Hanging Method: Stem
Finish Color: Brushed Polished Nickel
Warranty: Limited Lifetime
Voltage: 120 V
Material: Aluminum, Copper, Silicon, Steel
Weight: 11.24 lb
Motor Type: DC

Design Details

Collection: Mondo
Product Design: Propeller
Product Style: Contemporary

Fan Details

Light Kit Type: Optional
Blade Color: Silver Aluminum
Fan Motor Size: 125x30
Blade Span: 54 in
Blade Pitch: 13 °
Airflow (Low Speed): 1,430 cfm
Airflow (High Speed): 6,000 cfm
Electricity Use: 33 W
Number of Blades: 3
Reversible Motor: True

Canopy Included: TRUE
Canopy Diameter: 5.12
Rod Length(s): 6.00
Warranty: Limited Lifetime
