Capturing the vintage feel of the industrial age, our Bellow IV fan was inspired by a bygone era. Nothing calls attention to the refined style of modern living like a carefully chosen reference to the past. The high-powered, wall-mounted Bellows IV fan provides a bold contrast to the latest trends in home decor.
Heavy Duty, 3-Speed Oscillating Motor
Hard-Wired Directly to Junction Box
This oscillating wall fan can be adjusted horizontally and vertically to customize airflow direction.
3-Speed Wall Control with On/Off Oscillation (Included)
Suitable for Damp Locations.

• Canopy Diameter: 6.06
• Warranty: Lifetime Limited Warranty

Bellows IV Indoor/Outdoor Wall Fan Dimensions

• Diameter: 16" (outside of cage); Height: 17.5" (From Wall to Bottom of the motor cage). Housing Width 16".
• Canopy Diameter 6.06". This fan can be mounted on the wall only.

Motor Information

• 82x25 mm AC motor with 3 speeds. The motor is covered under a limited lifetime warranty and is available is 4 colors.
• The Bellows IV fan uses a AC current motor that creates more power and torque. While still only using only 43 watts of electricity!

Fan Blades

• Comes with 3 steel blades. 14" Blade sweep.

Control

• Wall Control with 3 speed and oscillating functions included. CM-8W

Light Kit

• The Bellows IV does not come with a light kit and is not light adaptable.

Room Suggestion

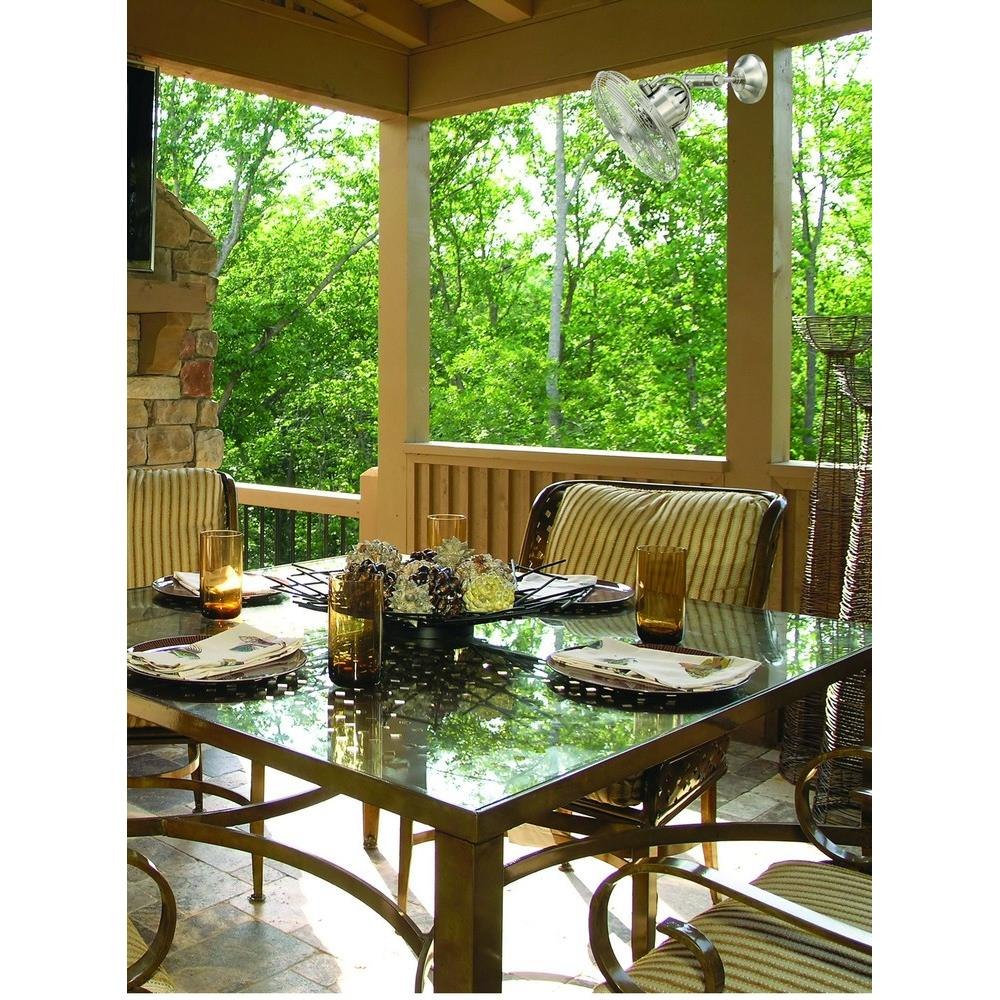

• The Bellows IV is great for small indoor or outdoor spaces, such as a family room, bedroom, exercise room or gym, patio, porch or bar area.

Features

• Damp rated for outdoor use.
• Available in 4 different finishes
• Oscillating feature for maximum coverage from a small fan.
• Can be mounted on the wall only
• Adjustable arm for angle of airflow.

Seasonal Settings

• Reverse your fan blade direction with the change of seasons for maximum comfort and energy savings.
• Summer Setting - When looking directly up at your fan from below, the blades should be moving in a counter clockwise direction, pushing cool air down.
• Winter Setting - When looking directly up at your fan from below, the blades should be moving in a clockwise direction, pushing air upwards, circulating warm air.
